  15. Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching key to release, unmarked

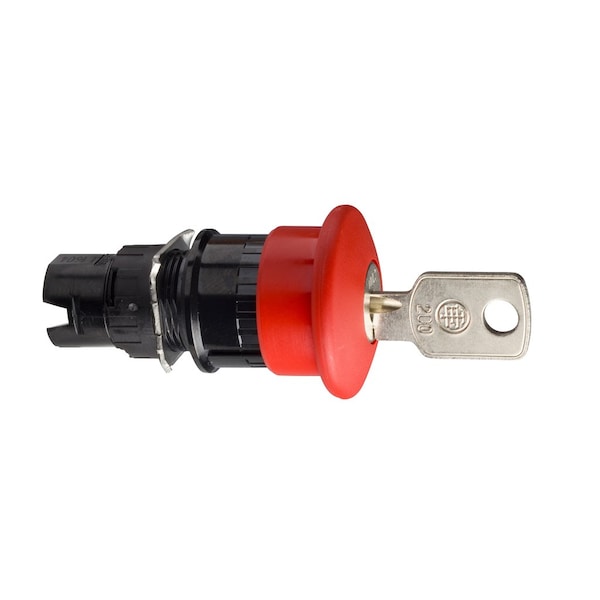

Schneider Electric Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching key to release, unmarked ZB6AS934 - main

Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching key to release, unmarked

  • Mfr # ZB6AS934

  • Zoro # G3305510

product price: $67.35
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Key; Push/Pull
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6AS934
Zoro #
G3305510
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Mushroom Head Diameter
30 mm
Height
30 mm
Width
30 mm
Mounting Diameter
16 mm
Cad Overall Width
30 mm
Cad Overall Depth
70 mm
Cad Overall Height
30 mm

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Key; Push/Pull
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
JIS C8201-5-1, UL 508, EN/ISO 13850, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60204-1, JIS C8201-1
Bezel Material
plastic
Type of Operator
trigger action and mechanical latching
Ambient Air Temperature For Storage
-40-70°C
Electrical Shock Protection Class
class II IEC 61140
Device Short Name
ZB6
Mechanical Durability
100000 cycles
Protective Treatment
TC
Shape of Signaling Unit Head
round
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6
Reset
key release
Ambient Air Temperature For Operation
-25-70°C
Nema Degree of Protection
NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Ip Degree of Protection
IP65 IEC 60529
Product or Component Type
head for emergency stop push-button
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Type of Keylock
key 200
Operator Profile
red mushroom Ø 30 mm, unmarked
Range of Product
Harmony XB6
Type Of Operator
trigger action and mechanical latching
Type Of Keylock
key 200
Shape Of Signaling Unit Head
round
Product Or Component Type
head for emergency stop push-button
Ip Degree Of Protection
IP65 IEC 60529
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Product Certifications
UL || CSA || GOST || CCC

Description

Red 030 Emergency stop pushbutton head 0
