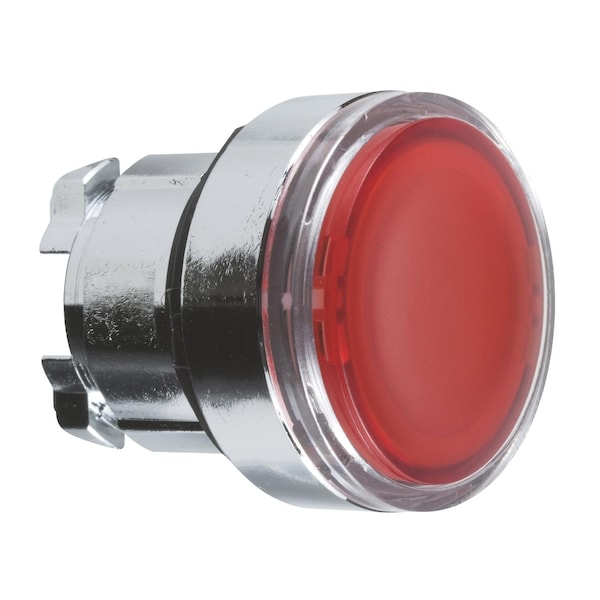

Head for illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, spring return, for insertion legend

  • Mfr # ZB4BA48

  • Zoro # G200906338

product price:  $11.99
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22.5 mm
Head Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BA48
Zoro #
G200906338
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22.5 mm
Width
29 mm
Height
29 mm
Mounting Diameter
22.5 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Cad Overall Depth
30 mm

Details

Item
Red flush illuminated pushbutton head 02
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Plug-In, Screw Clamp
Standards
JIS C8201-5-1, UL 508, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1
Type of Operator
spring return
Bezel Material
chromium plated metal
Product or Component Type
head for illuminated push-button
Operator Additional Information
for insertion of legend
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting
Protective Treatment
TH
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shape of Signaling Unit Head
round
Operator Profile
red flush, unmarked
Range of Product
Harmony XB4
Head Type
standard
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree of Protection
IK06 conforming to IEC 62262
Device Presentation
basic element
Device Short Name
ZB4
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
10000000 cycles
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Nema Degree of Protection
NEMA 13, NEMA 4X
Cap/Operator or Lens Colour
red
Overvoltage Category
class I IEC 60536
Ambient Air Temperature For Operation
-40-70°C
Product Compatibility
universal LED
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Or Component Type
head for illuminated push-button
Shape Of Signaling Unit Head
round
Product Certifications
LROS (Lloyds register of shipping) || GL || DNV || UL Listed || CSA || BV
Ik Degree Of Protection
IK06 EN 50102
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Type Of Operator
spring return

Description

Red flush illuminated pushbutton head 02
