  15. Head for illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, for insertion legend

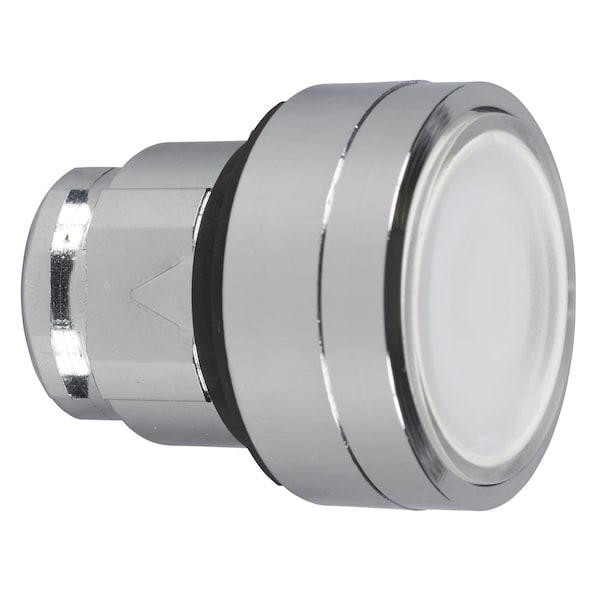

Schneider Electric Head for illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, for insertion legend ZB4BA18 - main

Head for illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, for insertion legend

  • Mfr # ZB4BA18

  • Zoro # G500906328

product price: $13.29
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB4BA18
Zoro #
G500906328
UPC #
3389110887716
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Width
29 mm
Height
29 mm
Mounting Diameter
22.5 mm
Cad Overall Depth
30 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Plug-In, Screw Clamp
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, GL, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, LROS, UL 508
Bezel Material
Chrome
IP Rating
IP66, IP67, IP69, IP69K
Number of Operators
1
Series
XB4
Type of Operator
spring return
Features
Compatible with Universal LED Block
Nema Degree of Protection
NEMA 13, NEMA 4X
Ambient Air Temperature For Operation
-40-70°C
Product Compatibility
universal LED
Product or Component Type
head for illuminated push-button
Device Presentation
basic element
Device Short Name
ZB4
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TH
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting
Head Type
standard
Overvoltage Category
class I IEC 60536
Range of Product
Harmony XB4
Mechanical Durability
10000000 cycles
Ik Degree of Protection
IK06 conforming to IEC 62262
Cap/Operator or Lens Colour
white
Operator Profile
white flush, unmarked
Operator Additional Information
for insertion of legend
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Shape of Signaling Unit Head
round
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
head for illuminated push-button
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Certifications
DNV || GL || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
Ik Degree Of Protection
IK06 EN 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Type Of Operator
spring return
Shape Of Signaling Unit Head
round
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
13, 4X
Number of Indicator Lights
0
Operator Material
Metal

Description

Push Button, Momentary, Head Material Plastic, Bezel Material Chrome, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards Bureau Veritas, CSA C22.2 No.14, DNV, GL, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, LROS, UL 508, Features Compatible with Universal LED Block
