  15. Head for illuminated push button, Harmony XB5, antimicrobial, plastic, red flush mounted, 30mm, universal LED,

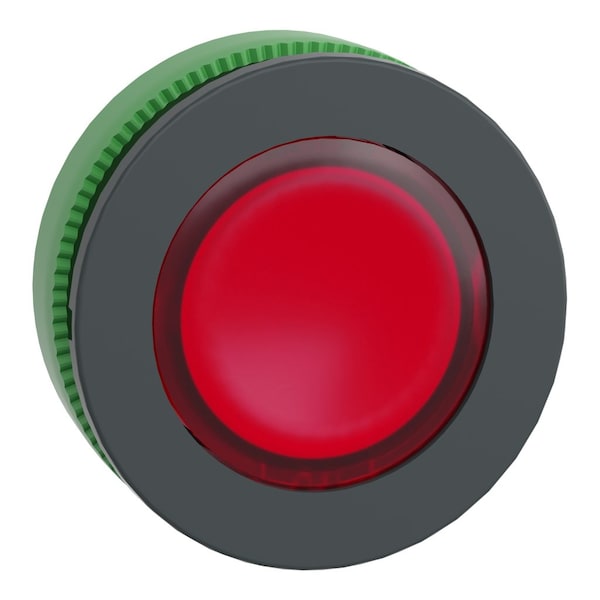

Schneider Electric Head for illuminated push button, Harmony XB5, antimicrobial, plastic, red flush mounted, 30mm, universal LED, ZB5FA48 - main

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, red flush mounted, 30mm, universal LED,

  • Mfr # ZB5FA48

  • Zoro # G7655209

product price: $13.75
/ea

Key Features

Type of Operator
spring return
NEMA Rating
NEMA 13 || NEMA 4X
Standards
JIS C8201-5-1, EN/IEC 60947-5-1, GB 14048.5, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, JIS C8201-1
Width
37 mm
Depth
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FA48
Zoro #
G7655209
UPC #
-
Country of Origin
France

Dimensions

Width
37 mm
Depth
30 mm
Height
37 mm
Mounting Diameter
30.5 mm

Details

Item
Push Button Red Flush Clear Ring
Type of Operator
spring return
NEMA Rating
NEMA 13 || NEMA 4X
Standards
JIS C8201-5-1, EN/IEC 60947-5-1, GB 14048.5, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, JIS C8201-1
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Color
red
Header
built-in-flush
Shape of Signaling Unit Head
round
Operator Additional Information
for insertion of legend
Nema Degree of Protection
NEMA 13, NEMA 4X
Product Compatibility
universal LED
Head Type
built-in-flush
Ambient Air Temperature For Operation
-40-70°C
Range of Product
Harmony XB5
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree of Protection
IK03 conforming to EN 50102
Group of Product
flush push with inser of legend
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, C4 6 single and double front mounting, C14 2 single front mounting, SF2 2 single front mounting, C3 6 single front mounting integral LED
Main Group
illum push-button
Ambient Air Temperature For Storage
-40-70°C
Cap/Operator or Lens Colour
red
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product or Component Type
head for illuminated push-button
Overvoltage Category
class II IEC 60536
Marking
unmarked
Device Short Name
ZB5
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Bezel Material
dark grey plastic
Protective Treatment
TC
Operator Profile
red flush, unmarked
Type Of Operator
spring return

Description

Push Button Red Flush Clear Ring

Documents & Resources

Restrictions

WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
