  15. Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 3 positions

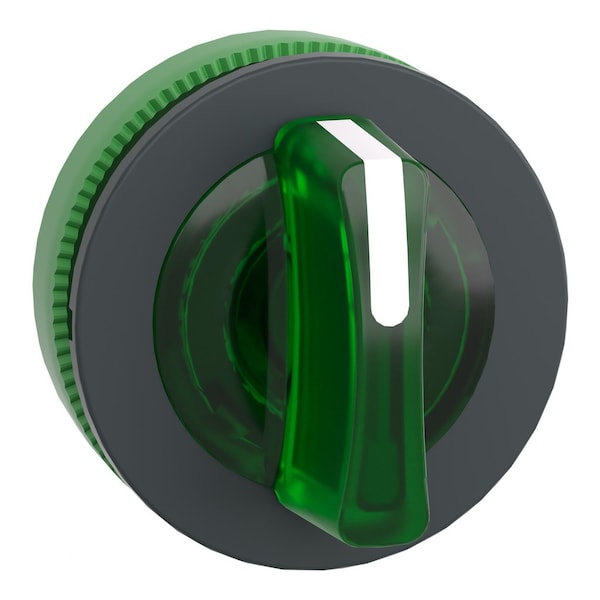

Schneider Electric Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 3 positions ZB5FK1333 - main

Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 3 positions

  • Mfr # ZB5FK1333

  • Zoro # G7655166

product price: $27.25
/ea

Key Features

Height
37 mm
Width
37 mm
Standards
EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, JIS C8201-1
Type of Operator
stay put
Bezel Material
dark grey plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FK1333
Zoro #
G7655166
UPC #
-
Country of Origin
France

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Width
37 mm
Cad Overall Height
37 mm
Cad Overall Depth
46 mm

Details

Item
Selector Switch Illum Green 3 Pos
Standards
EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, JIS C8201-1
Type of Operator
stay put
Bezel Material
dark grey plastic
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shape of Signaling Unit Head
round
Range of Product
Harmony XB5
Operator Position Information
3 positions +/- 45°
Mechanical Durability
500000 cycles
Ik Degree of Protection
IK03 conforming to IEC 50102
Nema Degree of Protection
NEMA 13, NEMA 4X
Overvoltage Category
class II IEC 60536
Head Type
built-in-flush
Product Compatibility
universal LED
Ambient Air Temperature For Operation
-40-70°C
Operator Profile
green standard handle
Electrical Composition Code
M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, M4 4 single and double front mounting integral LED
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product or Component Type
head for illuminated selector switch
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TH
Device Short Name
ZB5
Device Presentation
basic element
Ik Degree Of Protection
IK03 IEC 50102
Product Or Component Type
head for illuminated selector switch
Product Certifications
GL || DNV || BV || CSA || UL Listed || LROS (Lloyds register of shipping)
Type Of Operator
stay put
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K

Description

Selector Switch Illum Green 3 Pos
