  15. Head for joystick controller, Harmony XB4, black metal, 22mm, 4 directions, stay put

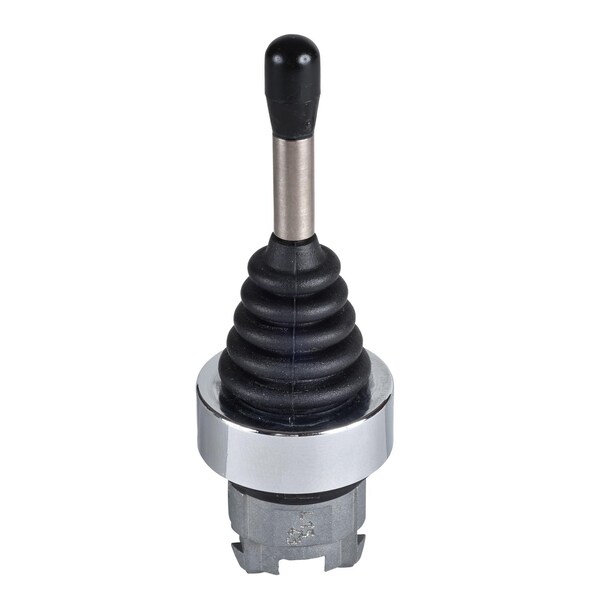

Schneider Electric Head for joystick controller, Harmony XB4, black metal, 22mm, 4 directions, stay put ZD4PA14 - main

Head for joystick controller, Harmony XB4, black metal, 22mm, 4 directions, stay put

  • Mfr # ZD4PA14

  • Zoro # G7826171

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Standards
JIS C8201-5-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Range of Product
Harmony XB4
Operator Direction Information
4 directions
Ambient Air Temperature For Storage
-40-70°C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZD4PA14
Zoro #
G7826171
UPC #
-
Country of Origin
France

Dimensions

Mounting Diameter
22 mm

Details

Item
Joystick controller head 022 4-direction
Standards
JIS C8201-5-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Range of Product
Harmony XB4
Operator Direction Information
4 directions
Ambient Air Temperature For Storage
-40-70°C
Electrical Shock Protection Class
class I IEC 60536
Nema Degree of Protection
NEMA 13, NEMA 4X
Operator Position Information
5 positions
Ambient Air Temperature For Operation
-25-70°C
Protective Treatment
TH
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
basic element
Product or Component Type
head for joystick controller
Bezel Material
chromium plated metal
Operator Profile
54 mm long operating shaft
Ik Degree of Protection
IK03 conforming to IEC 50102
Type of Operator
stay put
Device Short Name
ZB4
Shape of Signaling Unit Head
round
Ip Degree of Protection
IP66 IEC 60529
Mechanical Durability
1000000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK03 IEC 50102
Product Certifications
UL Listed || DNV || LROS (Lloyds register of shipping) || GL || CSA || BV
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529
Shape Of Signaling Unit Head
round
Product Or Component Type
head for joystick controller
Type Of Operator
stay put

Description

Joystick controller head 022 4-direction
