  15. Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return

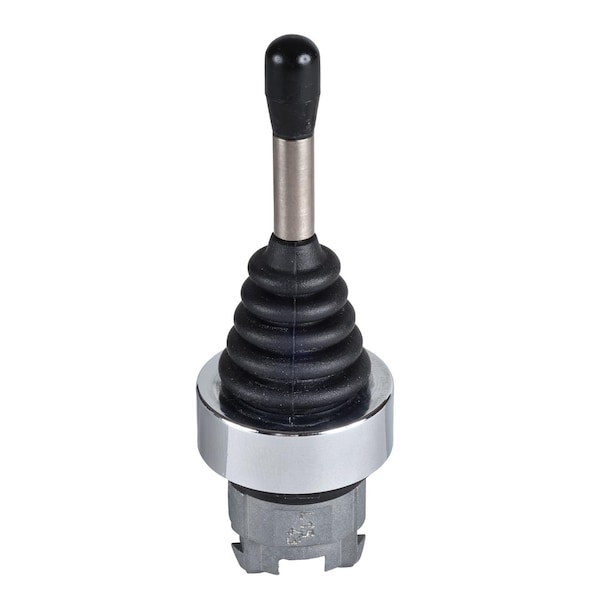

Schneider Electric Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return ZD4PA22 - main

Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return

  • Mfr # ZD4PA22

  • Zoro # G3154947

product price: $208.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 60947-5-5, IEC 60947-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Type of Operator
to zero position spring return
Bezel Material
chromium plated metal
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree of Protection
IP66 IEC 60529
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZD4PA22
Zoro #
G3154947
UPC #
785901860709
Country of Origin
France

Dimensions

Mounting Diameter
22 mm

Details

Item
Replacement Joystick Handle
Standards
IEC 60947-5-5, IEC 60947-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Type of Operator
to zero position spring return
Bezel Material
chromium plated metal
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree of Protection
IP66 IEC 60529
Ik Degree of Protection
IK03 conforming to IEC 50102
Product or Component Type
head for joystick controller
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
basic element
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
54 mm long operating shaft
Protective Treatment
TH
Nema Degree of Protection
NEMA 13, NEMA 4X
Device Short Name
ZB4
Ambient Air Temperature For Operation
-25-70°C
Range of Product
Harmony XB4
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Position Information
3 positions
Mechanical Durability
1000000 cycles
Shape of Signaling Unit Head
round
Operator Direction Information
2 directions
Electrical Shock Protection Class
class I IEC 60536
Ip Degree Of Protection
IP66 IEC 60529
Product Certifications
DNV || UL Listed || BV || LROS (Lloyds register of shipping) || CSA || GL
Ik Degree Of Protection
IK03 IEC 50102
Product Or Component Type
head for joystick controller
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round
Type Of Operator
to zero position spring return

Description

Replacement Joystick Handle
