  15. Head for joystick controller, Harmony XB4, plastic, 22mm, 4 directions, spring return

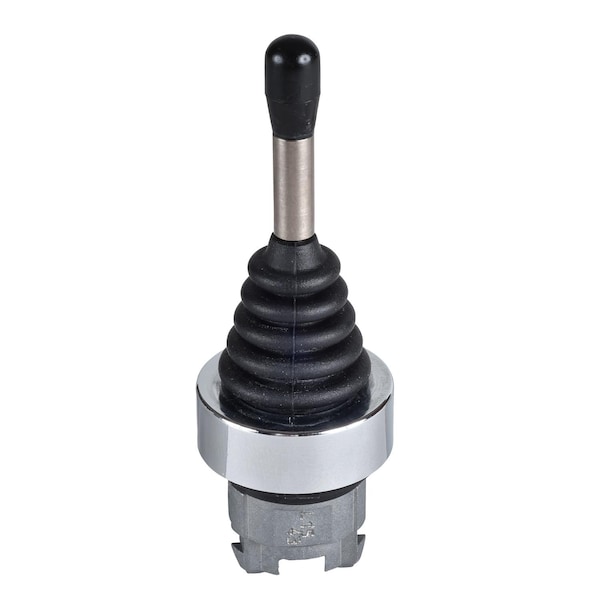

Schneider Electric Head for joystick controller, Harmony XB4, plastic, 22mm, 4 directions, spring return ZD4PA24 - main

Head for joystick controller, Harmony XB4, plastic, 22mm, 4 directions, spring return

  • Mfr # ZD4PA24

  • Zoro # G7826162

product price: $210.99
/ea
Free Shipping & Returns

Key Features

Standards
EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-1
Mounting Diameter
22 mm
Operator Direction Information
4 directions
Ik Degree of Protection
IK03 conforming to IEC 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZD4PA24
Zoro #
G7826162
UPC #
-
Country of Origin
France

Dimensions

Mounting Diameter
22 mm

Details

Item
Joystick controller head 022 4-direction
Standards
EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-1
Operator Direction Information
4 directions
Ik Degree of Protection
IK03 conforming to IEC 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Nema Degree of Protection
NEMA 13, NEMA 4X
Range of Product
Harmony XB4
Device Presentation
basic element
Device Short Name
ZB4
Shape of Signaling Unit Head
round
Operator Profile
54 mm long operating shaft
Ip Degree of Protection
IP66 IEC 60529
Protective Treatment
TH
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Type of Operator
to zero position spring return
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class I IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Bezel Material
chromium plated metal
Mechanical Durability
1000000 cycles
Operator Position Information
5 positions
Product or Component Type
head for joystick controller
Product Or Component Type
head for joystick controller
Ip Degree Of Protection
IP66 IEC 60529
Ik Degree Of Protection
IK03 IEC 50102
Type Of Operator
to zero position spring return
Product Certifications
CSA || LROS (Lloyds register of shipping) || GL || BV || UL Listed || DNV
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round

Description

Joystick controller head 022 4-direction
