Siemens

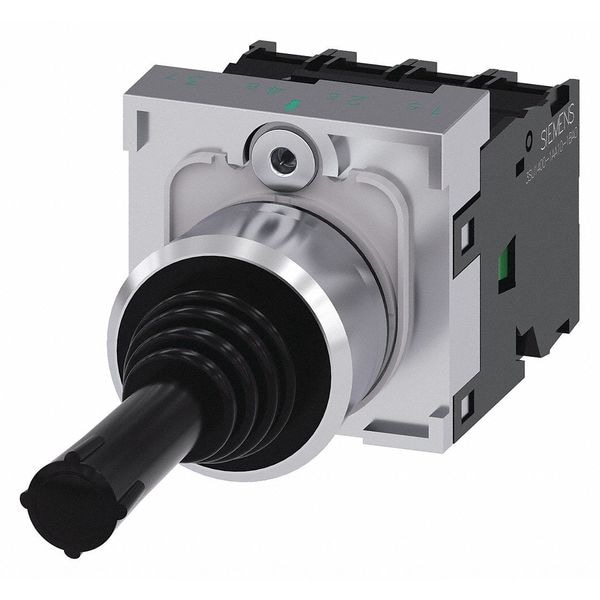

Joystick Operator, 4 Directions, 22mm

original price: $265.21
13% off
new price: $228.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Momentary
  • Size 22 mm
  • Number of Directions 4
  • NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X
  • Joystick Material Plastic
See all product information

Product Information

Dimensions

Size 22 mm
Overall Depth 4.92 in
Overall Width 1.57 in
Shaft Length 2.81 in
Overall Height 1.57 in
Panel Cutout Diameter 22 mm

Details

Action Momentary
Number of Directions 4
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Joystick Material Plastic
Contact Form 1NO
Bezel Nickel Plated Brass and Zinc Die Cast
Item Joystick Operator
Latching / Non-Latching Non-Latching
Contact Rating 10A @ 600V AC/1A @ 600V DC
Direction of Operation Vertical and Horizontal
Bezel Material Metal
Standards CCC, CE, CSA, EAC, UKCA, UL Listed
IP Rating IP65, IP67
NEMA Contact Rating Designation A600/R300
AC Contact Rating 10 A @ 600 V
DC Contact Rating 1 A @ 600 V
Switch Action Momentary
Series 3SU1
Latch Type Non-Latching
Number of Positions 4
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X

Description

Joystick Operator, 22 mm, Number of Directions 4, 1NO Contact Form, Contact Rating 10A @ 600V AC/1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Joystick Material Plastic, Bezel Nickel Plated Brass and Zinc Die Cast, Non-Latching, Vertical and Horizontal Direction of Operation, Action Momentary, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, IP Rating IP65, IP67, Standards CCC, CE, CSA, EAC, UKCA, UL Listed
