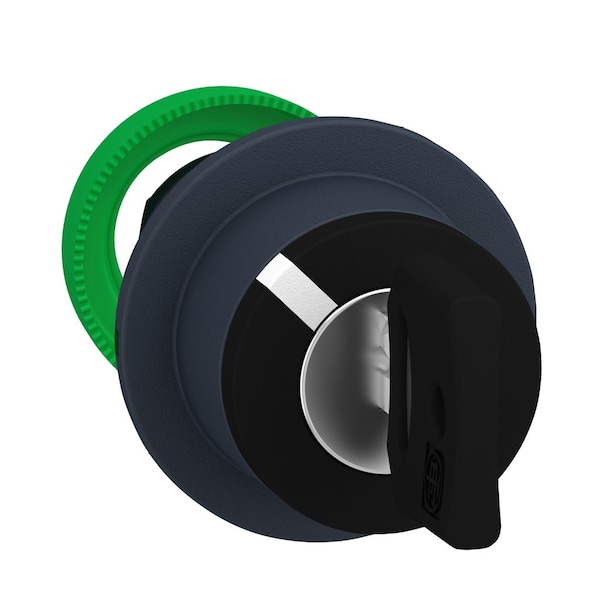

Head for key selector switch, Harmony XB5, flush mounted 8D1 2 pos return right to left

  • Mfr # ZB5FG6D

  • Zoro # G4057861

product price:
$
66.39
/ea

Key Features

Bezel Material
dark grey plastic
Standards
EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Protective Treatment
TH
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Type Of Keylock
Dom 8D1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZB5FG6D
Zoro #
G4057861
UPC #
-
Country of Origin
France
Item
Flush mounted selector switch head key 8
Bezel Material
dark grey plastic
Standards
EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Protective Treatment
TH
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Type Of Keylock
Dom 8D1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
CSA || LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV
Device Short Name
ZB5
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
1000000 cycles
Ik Degree Of Protection
IK03 IEC 50102
Electrical Composition Code
C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting || C15 1 single front mounting
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Key Withdrawal Position
left
Head Type
built-in-flush
Overvoltage Category
class II IEC 60536
Type Of Operator
right to left spring return
Operator Position Information
2 positions 90°
Operator Profile
black key switch
Product Or Component Type
head for key selector switch
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Range of Product
Harmony XB5

Description

Flush mounted selector switch head key 8
