- MFR #
- IFS201
- Zoro #
- G9990084
- UPC #
- -
- Country of Origin
- United States
- Item

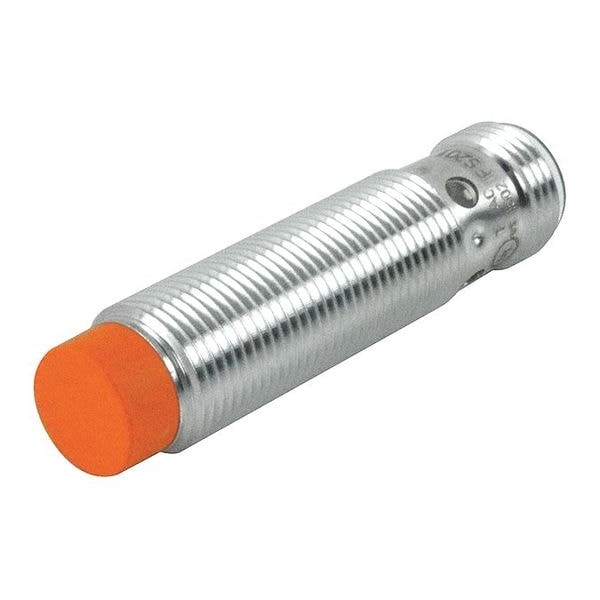

- Proximity Sensor
- Style
- Cylindrical, Inductive
- Proximity Sensing Method
- Inductive
- Body Material
- Brass
- Proximity Sensor Power Requirement
- 10 to 30V DC
- Electrical Connection
- M12
- Output Circuit Type
- NPN/PNP
- Sensing Distance - Maximum
- 7 mm
- AC Voltage Rating
- Not Rated
- DC Voltage Rating
- 10-30V DC
- Output Circuit Contact Form
- NO
- Standards
- EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL Listed
- Proximity Sensor Electrical Connection
- 4 Pin M12 Connector
- Proximity Sensor Operating Frequency
- 700 Hz
- IP Rating
- IP67
- Max. Current Load
- 100mA
- Includes
- (2) Lock Nuts
- Operating Temp. Range
- -13 Degrees to 158 Degrees F
- Connection
- Connector: 1 x M12; coding: A; Contacts: gold-plated
- Thread designation
- M12 x 1
- Ambient temperature [°C]
- -25...70
- Display
- switching status 4 x 90° LED, yellow
- Increased sensing range
- yes
- Minimum load current [mA]
- 2
- Protection
- IP 67
- UL approval
- Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191
- Hysteresis [% of Sr]
- 3...15
- Special feature
- Gold-plated contacts; Increased sensing range
- Max. voltage drop switching output DC [V]
- 2.5
- Switching frequency DC [Hz]
- 700
- Operating distance [mm]
- 0...5.7
- Real sensing range Sr [mm]
- 7± 10 %
- MTTF [years]
- 2487
- Max. leakage current [mA]
- 0.5
- Type of short-circuit protection
- pulsed
- Application
- Industrial applications / factory automation
- Reverse polarity protection
- yes
- EMC
- EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
- Overload protection
- yes
- Switch point drift [% of Sr]
- -10...10
- Short-circuit protection
- yes
- Correction factor
- steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
- Electrical design
- PNP/NPN
- Housing
- threaded type
- Sensing range [mm]
- 7
- Permanent current rating of switching output DC [mA]
- 100
- Operating voltage [V]
- 10...30 DC
- Mounting
- non-flush mountable
- Protection class
- II
- Items supplied
- lock nuts: 2
- Materials
- brass white bronze coated; sensing face: PBT
- Ambient temperature [°C]
- -25...70
- Includes Indicator Lights
- Indicator Lights Included
- Switching Frequency
- 700 Hz
- Operating Temperature - Minimum
- -13 Degrees F
- Output Circuit Number of Wires
- 2
- Sensing Method
- Inductive
- Electrical Installation Type
- Direct Connector
- Number of Pins
- 4
- Body Finish
- Bronze Coated
- Sensing Face Shielding
- Unshielded
- Operating Temperature - Maximum
- 158 Degrees F
- Output Circuit Voltage - Maximum
- 2.5 V DC
- Output Circuit Current - Maximum
- 100 mA
