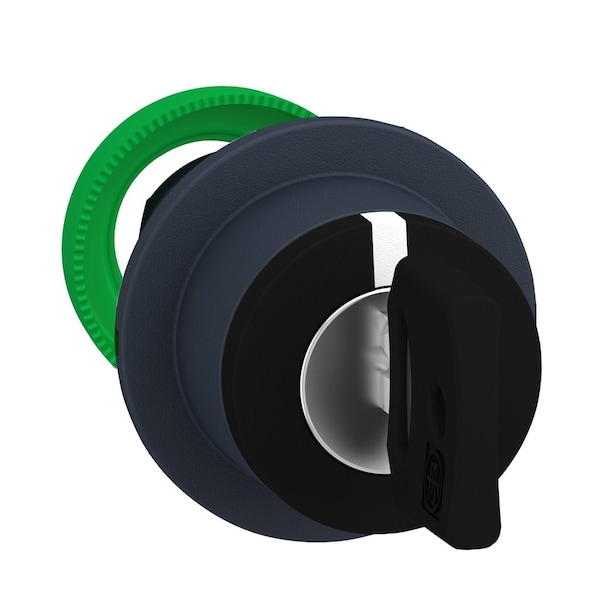

Head for key selector switch, Harmony XB5, flush mounted 8D1 3 pos return center

Flush mounted selector switch head key 8

to centre spring return

dark grey plastic

JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C8201-1

3 positions +/- 45°

Dom 8D1, key 3131A

black key switch

IP66 IEC 60529, IP67, IP69, IP69K

TH

5 gn 2-500 Hz)IEC 60068-2-6

built-in-flush

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

round

NEMA 13, NEMA 4X

center

head for key selector switch

7000000 Pa 55°C 0.1 m

C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C3 6 single front mounting, SF1 3 single front mounting

1000000 cycles

class II IEC 60536

-40-70°C

-40-70°C

IK03 conforming to IEC 50102

ZB5

Harmony XB5

round

IP66 IEC 60529 || IP67 || IP69 || IP69K

Dom 8D1 || key 3131A

NEMA 13 || NEMA 4X

to centre spring return

GL || LROS (Lloyds register of shipping) || BV || UL Listed || DNV || CSA

head for key selector switch
