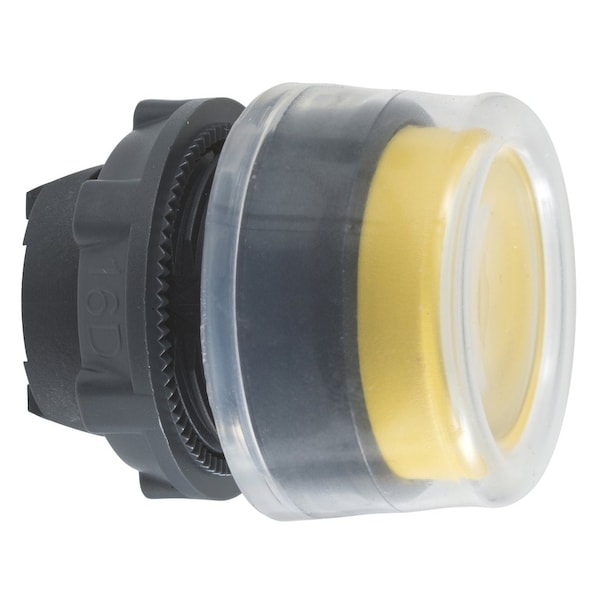

Head for non illuminated push button, Harmony XB5, plastic, projecting, yellow, 22mm, spring return, booted, unmarked

Push button head,plastic,projecting,y

EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1

dark grey plastic

class II IEC 60536

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs

UL Listed || BV || CSA || GL || DNV || LROS (Lloyds register of shipping)

5 gn 2-500 Hz)IEC 60068-2-6

standard

basic element

spring return

10000000 cycles

round

TH

yellow projecting, unmarked

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

-40-70°C

not compatible with legend holder

IK03 IEC 50102

clear boot

-40-70°C

NEMA 13 || NEMA 4X

7000000 Pa 55°C 0.1 m

head for non-illuminated push-button

Harmony XB5
