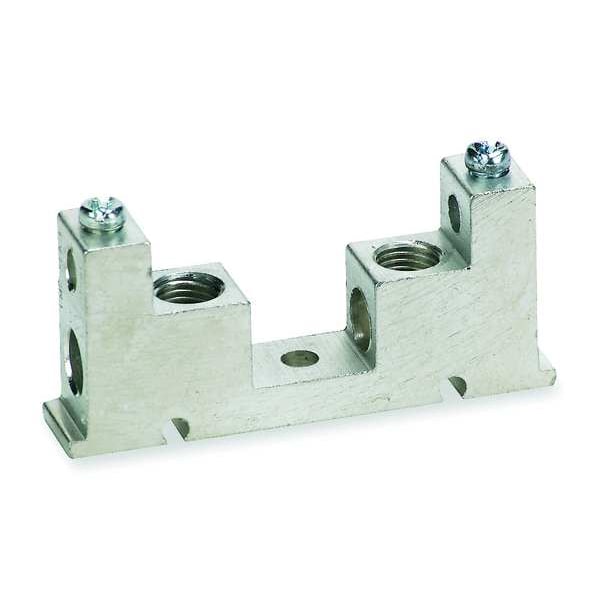

Ground Kit, 600VAC, 60/100A
Mfr # GTK0610
Zoro # G1857186
Key Features
Specifications
Product Information
- MFR #
- GTK0610
- Zoro #
- G1857186
- UPC #
- 785901751380
- Country of Origin
- United States
Dimensions
- Width
- 3.18 in
- Depth
- 0.63 in
- For Disconnect Switch Size
- 60 A
- Height
- 1.41 in
Details
- Item
- Ground Kit
- Amps AC
- 100 A
- Description/Special Features
- 1 Al/Cu
- Voltage
- 600V AC
- For Use With
- General Duty Safety Switches
- Standards
- UL 98
- Maximum Voltage
- 600V AC
- Product Type
- Grounding Kit
- Current Rating
- 60 A
- Duty
- Heavy Duty
- Series Name
- heavy duty
- Product Or Component Type
- safety switch grounding bar
- Tightening Torque
- 20-20 lbf.in (AWG 14 to AWG 10) || 25-25 lbf.in (AWG 8) || 35-35 lbf.in (AWG 6 to AWG 4) || 50-50 lbf.in (AWG 3 to AWG 1/0)
- Awg Gauge
- AWG 2 copper or aluminium
- Line Rated Current
- 60 A F1 || 60 A F3 || 60 A F5 || 60 A F7 || 100 A F2 || 100 A F7
- Products By Industry
- Electrical
Description
The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Square D heavy duty safety switch grounding bar comes in 30A and 60A. This grounding bar accepts AWG gauges of AWG 12 (CU), AWG 10 (AL), and AWG 4 (AL/CU). This product comes with an 18 month warranty. This heavy duty safety switch grounding bar by Square D has a rated current of 60A and 100A and is rated ofr an AWG gauge of AWG 2, copper or aluminium
