  8. Head for non illuminated push button, Harmony XB6, blue rectang flush pushbutton Ø 16 spring return unmarked

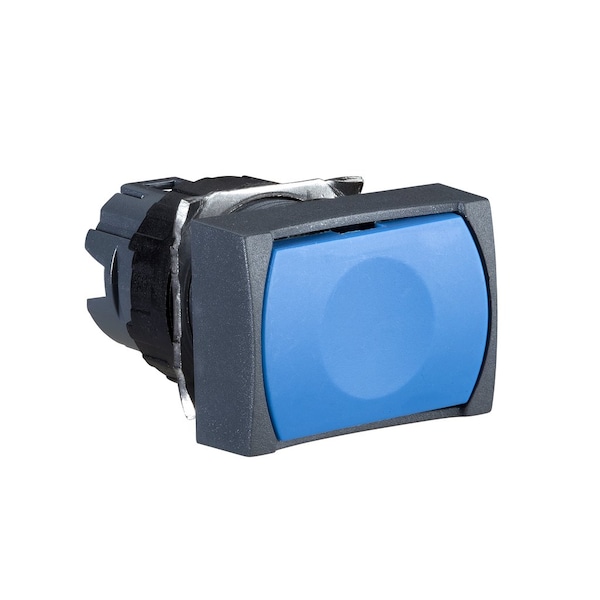

Schneider Electric Head for non illuminated push button, Harmony XB6, blue rectang flush pushbutton Ø 16 spring return unmarked ZB6DA6 - main

Head for non illuminated push button, Harmony XB6, blue rectang flush pushbutton Ø 16 spring return unmarked

  • Mfr # ZB6DA6

  • Zoro # G3307872

product price:  $15.55
/ea

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
Head Color
Blue
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB6DA6
Zoro #
G3307872
UPC #
-
Country of Origin
Spain

Dimensions

Panel Cutout Diameter
16 mm
Cad Overall Height
18 mm
Cad Overall Depth
33 mm
Cad Overall Width
24 mm
Mounting Diameter
16 mm

Details

Item
Push Button Head
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Head Color
Blue
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, JIS C 852, EN/IEC 60947-5-5, JIS C8201-1
Bezel Material
plastic
Operator Profile
blue flush, unmarked
Ambient Air Temperature For Storage
-40-70°C
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TC
Ambient Air Temperature For Operation
-25-70°C
Ip Degree Of Protection
IP65 IEC 60529
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
head for non-illuminated push-button
Electrical Shock Protection Class
class II IEC 61140
Shape Of Signaling Unit Head
rectangular
Device Short Name
ZB6
Type Of Operator
spring return
Product Certifications
CCC || GOST || CSA || UL
Range of Product
Harmony XB6

Description

Blue rectang flush pushbutton head 016 s
