  13. Push Button operator, 22 mm, Red
Shop All Push Button Switches
Schneider Electric

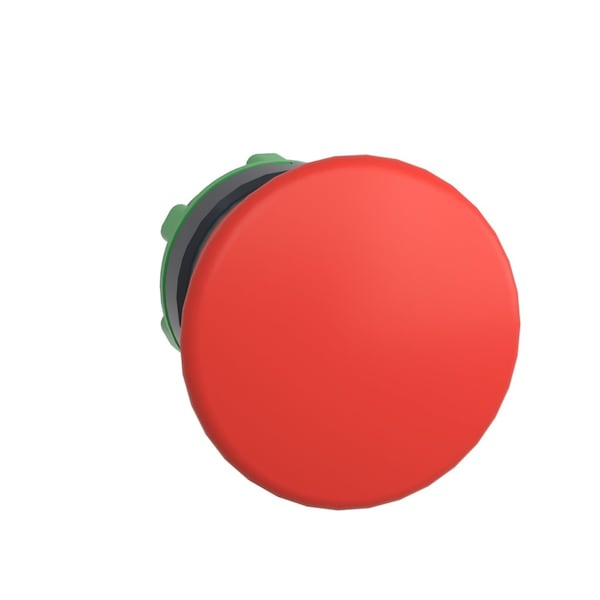

Push Button operator, 22 mm, Red

product price: $25.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Momentary
  • Size 22 mm
  • Head Material Plastic
  • NEMA Rating 1, 13, 2, 3, 4, 4X
  • Type of Operator 40mm Mushroom Head
See all product information

Product Information

Dimensions

Size 22 mm
Cad Overall Width 40 mm
Cad Overall Height 40 mm
Cad Overall Depth 52 mm
Mounting Diameter 22 mm
Overall Depth 2.05 in
Mushroom Head Diameter 40 mm
Overall Height 1.57 in
Overall Width 1.57 in
Panel Cutout Diameter 22 mm
Manufacturer Warranty Length 18 mo

Details

Action Momentary
Head Material Plastic
NEMA Rating 1, 13, 2, 3, 4, 4X
Type of Operator 40mm Mushroom Head
Color Red
Number of Operators 1
Item Mushroom Head Push Button
Bezel Material Plastic
Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Accessory Group A
IP Rating IP66
Basic Material Plastic
Features Snap-Fit Assembly, High Brightness
Series XB5
Product Type Push Button Operators
Protective Treatment TH
Ik Degree Of Protection IK03 IEC 50102
Ambient Air Temperature For Storage -40-70°C
Operator Profile red mushroom Ø 40 mm, unmarked
Head Type standard
Ip Degree Of Protection IP66 IEC 60529 || IP69 || IP69K
Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Overvoltage Category class II IEC 60536
Product Or Component Type head for non-illuminated push-button
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Station Name XALD 1 cut-out || XALK 1 cut-out
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability 5000000 cycles
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Nema Degree Of Protection NEMA 13 || NEMA 4X
Device Presentation basic element
Compatibility Code ZB5
Product Certifications UL Listed || LROS (Lloyds register of shipping) || BV || GL || CSA || DNV
Device Short Name ZB5
Shape Of Signaling Unit Head round
Ambient Air Temperature For Operation -40-70°C
Number of Indicator Lights 0
Head Color Red
Operating Temperature - Minimum -40 Degrees F
Operator Material Plastic
Operating Temperature - Maximum 158 Degrees F
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification Not Rated
Operator Illumination Non-Illuminated
Push Button Style Mushroom Head
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X

Description

Mushroom Head Push Button, 22 mm, Momentary, Type of Operator 40mm Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
