  15. Head for pilot light, Harmony XB5, antimicrobial, plastic, green, 30mm, universal LED, plain lens

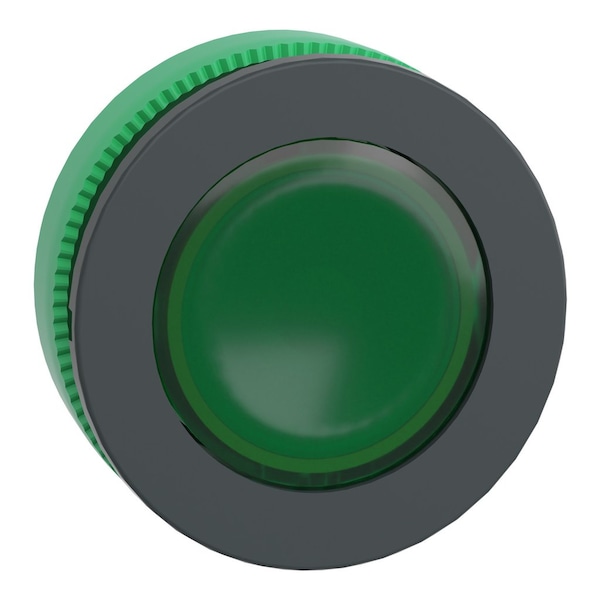

Schneider Electric Head for pilot light, Harmony XB5, antimicrobial, plastic, green, 30mm, universal LED, plain lens ZB5FV033 - main

Head for pilot light, Harmony XB5, antimicrobial, plastic, green, 30mm, universal LED, plain lens

  • Mfr # ZB5FV033

  • Zoro # G7655543

product price: $6.99
/ea
Sold in multiples of 2 for $13.98

Key Features

Height
37 mm
Width
37 mm
Standards
IEC 60947-1, IEC 60947-5-4, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-5, JIS C8201-1, ISO 21702, ISO 22196:2011
Bezel Material
dark grey plastic
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FV033
Zoro #
G7655543
UPC #
-
Country of Origin
France

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Depth
30 mm
Cad Overall Width
37 mm
Cad Overall Height
37 mm

Details

Item
Green Pilot Light
Standards
IEC 60947-1, IEC 60947-5-4, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-5, JIS C8201-1, ISO 21702, ISO 22196:2011
Bezel Material
dark grey plastic
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Range of Product
Harmony XB5
Ambient Air Temperature For Operation
-40-70°C
Overvoltage Category
class II IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Operator Additional Information
with plain lens
Nema Degree of Protection
NEMA 13, NEMA 4X
Device Presentation
basic element
Cap/Operator or Lens Colour
green
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product or Component Type
head for pilot light
Ik Degree of Protection
IK03 conforming to IEC 50102
Device Short Name
ZB5
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Head Type
built-in-flush
Shape of Signaling Unit Head
round
Product Compatibility
universal LED
Protective Treatment
TH
Electrical Composition Code
P1 front mounting integral LED, P2 front mounting integral LED and transformer, PF1 front mounting integral LED
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ik Degree Of Protection
IK03 IEC 50102
Cap/Operator Or Lens Colour
green
Shape Of Signaling Unit Head
round
Product Or Component Type
head for pilot light

Description

Green Pilot Light
