  15. Head for Push-button, 30 mm, Red

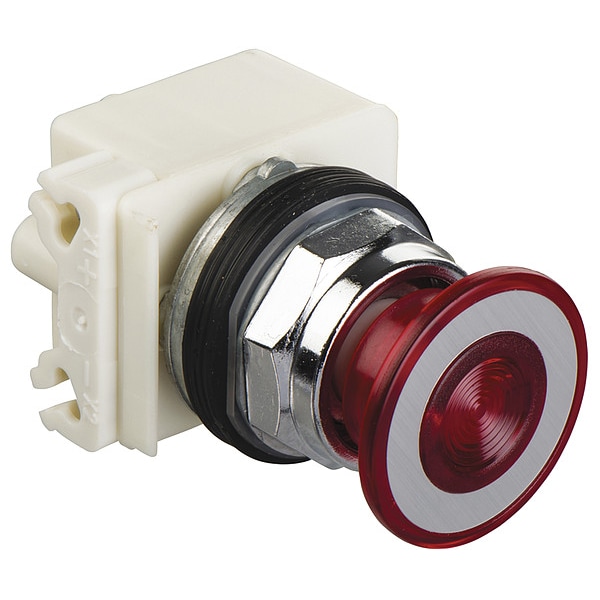

Schneider Electric Head for Push-button, 30 mm, Red 9001KR9P35LRR - main

Head for Push-button, 30 mm, Red

  • Mfr # 9001KR9P35LRR

  • Zoro # G3461395

product price: $211.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR9P35LRR
Zoro #
G3461395
UPC #
785901177609
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
40 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Width
1.62 in
Overall Height
1.62 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Class II IEC 60536, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508
Basic Material
Metal
Bezel
Chrome Plated Metal
Bezel Material
Metal
Series
9001K
Legend/Background Color
No Legend
IP Rating
IP66
Lamp Module Voltage
24V AC/DC
Type of Operator
41mm Mushroom Head
Color
Red
Features
Snap-Fit Assembly
Lamp Type
LED
Number of Operators
1
NEMA Rating
1, 12, 13, 2, 3, 3R, 4
[Us] Rated Supply Voltage
24 to 28 V, 24 V AC/DC
Operating Position
any position
Bulb Base
BA 9s
Operator Position Information
2 positions
Protective Treatment
TC
Operator Profile
red mushroom Ø 41 mm, unmarked, mushroom Ø 41 mm
Product Certifications
NEMA || UL 508
Product Or Component Type
head for illuminated push-button
Cap/Operator Or Lens Colour
red
Electrical Shock Protection Class
class II IEC 60536
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
without contact block
Light Block Supply
direct
Compatibility Code
9001K
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529
Overvoltage Category
class II IEC 60536
Light Source
incandescent, LED
Device Short Name
9001K
Mechanical Durability
5000000 cycles
Shape Of Signaling Unit Head
round
Light Source Colour
red
Operator Additional Information
screw-on plastic
Shock Resistance
50 gn IEC 60068-2-27
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operating Temperature - Minimum
-13 Degrees F
Lamp Voltage - Maximum
28 V AC/DC

Description

Mushroom Head Push Button, 30 mm, Maintained, Type of Operator 41mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, IP Rating IP66, Legend Not Applicable, Legend/Background Color No Legend, Standards Class II IEC 60536, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508, Features Snap-Fit Assembly

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
