  13. Illuminated Push Button Operator, 22 mm, Blue
Shop All Push Button Switches
Schneider Electric

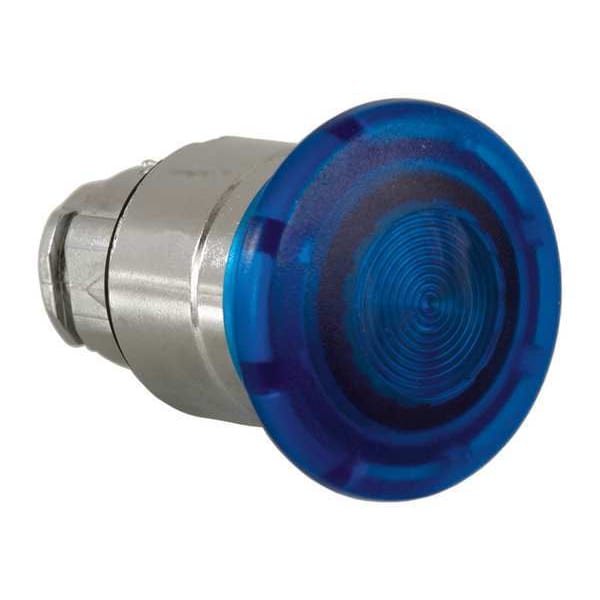

Illuminated Push Button Operator, 22 mm, Blue

product price: $25.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Features Visually Distinct at a Distance, Snap-Fit Assembly
  • Number of Operators 1
  • NEMA Rating 13, 4X
  • Series XB4
  • Size 22 mm
See all product information

Product Information

Dimensions

Size 22 mm
Manufacturer Warranty Length 18 mo
Overall Width 1.57 in
Overall Depth 2.09 in
Mushroom Head Diameter 40 mm
Overall Height 1.57 in
Panel Cutout Diameter 22 mm

Details

Item Mushroom Head Push Button
Features Visually Distinct at a Distance, Snap-Fit Assembly
Number of Operators 1
NEMA Rating 13, 4X
Series XB4
Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Action Momentary
Head Material Metal
IP Rating IP66
Lamp Type No Lamp Module Included
Lamp Voltage Dependent on Module Used
Operating Temperature - Minimum -40 Degrees F
Operator Material Metal
NEMA Enclosure Rating 1, 12, 13, 2, 3, 4, 4X
Bezel Material Metal
Operating Temperature - Maximum 158 Degrees F
Number of Indicator Lights 1
Operator Illumination Illuminated
Lamp Module Type No Lamp Module Included
Product Type Push Button Operators
Head Color Blue
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification Not Rated
Push Button Style Mushroom Head

Description

Mushroom Head Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Blue, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508, Includes 40mm Surface Area
