  15. Head for push button, Harmony XB4, pushbutton harsh environment, white, without marking

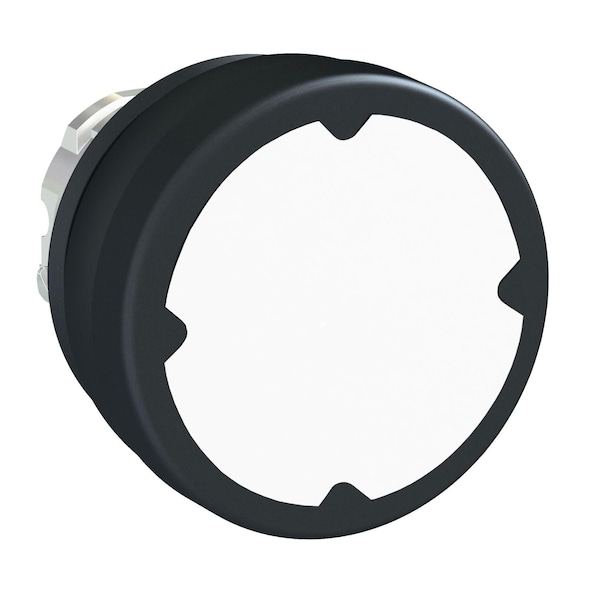

Schneider Electric Head for push button, Harmony XB4, pushbutton harsh environment, white, without marking ZB4BC180 - main

Head for push button, Harmony XB4, pushbutton harsh environment, white, without marking

  • Mfr # ZB4BC180

  • Zoro # G4061748

product price: $34.49
/ea

Key Features

Bezel Material
chromium plated metal
Type of Operator
spring return
Standards
IEC 60947-1, IEC 60947-5-1, CSA C22.2, UL 508
Mechanical Durability
10000000 cycles
Mounting Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BC180
Zoro #
G4061748
UPC #
-
Country of Origin
France

Dimensions

Mounting Diameter
22 mm

Details

Item
Pushbutton head for harsh environment -
Bezel Material
chromium plated metal
Type of Operator
spring return
Standards
IEC 60947-1, IEC 60947-5-1, CSA C22.2, UL 508
Mechanical Durability
10000000 cycles
Main Group
harsh environment
Ambient Air Temperature For Operation
-40-70°C
Ik Degree of Protection
IK06 conforming to IEC 62262
Device Short Name
ZB4
Nema Degree of Protection
NEMA 4 UL 508, NEMA 13, NEMA 12
Shape of Signaling Unit Head
round
Range of Product
Harmony XB4
Group of Product
flush unmarked
Product or Component Type
head for push-button
Operator Additional Information
vertical mounting, horizontal mounting
Resistance To High Pressure Washer
90 Pa 82.5°C
Device Presentation
basic element
Ip Degree of Protection
IP66 IEC 60529, IP69K, IP67, IP69
Ambient Air Temperature For Storage
-40-85°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Marking
unmarked
Electrical Shock Protection Class
class I IEC 61140
Operator Profile
white flush, unmarked
Cap/Operator or Lens Colour
white
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6

Description

Pushbutton head for harsh environment -
