Shop SCHNEIDER ELECTRIC

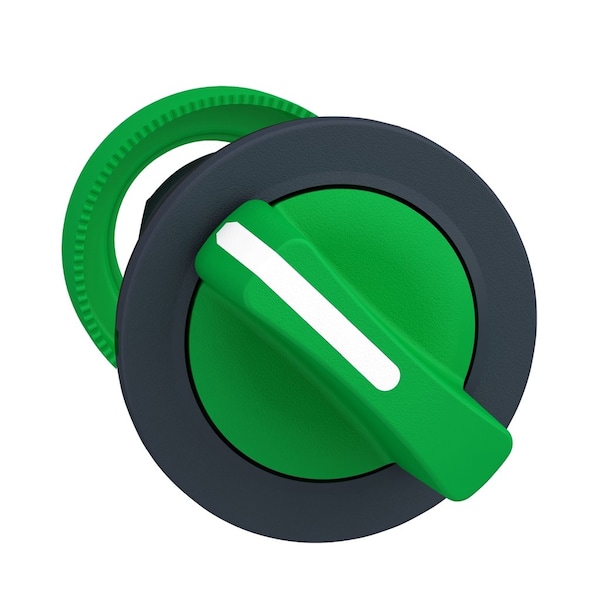

Head for selector switch, Harmony XB5, flush mounted green 2 pos stay put

  • Mfr # ZB5FD203

  • Zoro # G4056452

product price:
$
17.89
/ea

Key Features

Bezel Material
dark grey plastic
Standards
EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
Ambient Air Temperature For Operation
-40-70°C
Shape Of Signaling Unit Head
round
Mounting Diameter
30.5 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZB5FD203
Zoro #
G4056452
UPC #
-
Country of Origin
France
Item
Flush mounted green selector switch head
Bezel Material
dark grey plastic
Standards
EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
Ambient Air Temperature For Operation
-40-70°C
Shape Of Signaling Unit Head
round
Operator Profile
green standard handle
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
Type Of Operator
stay put
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Certifications
BV || GL || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed
Product Or Component Type
head for selector switch
Mechanical Durability
1000000 cycles
Device Short Name
ZB5
Head Type
built-in-flush
Overvoltage Category
class II IEC 60536
Ik Degree Of Protection
IK03 IEC 50102
Protective Treatment
TH
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Operator Position Information
2 positions 90°
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Range of Product
Harmony XB5

Description

Flush mounted green selector switch head
