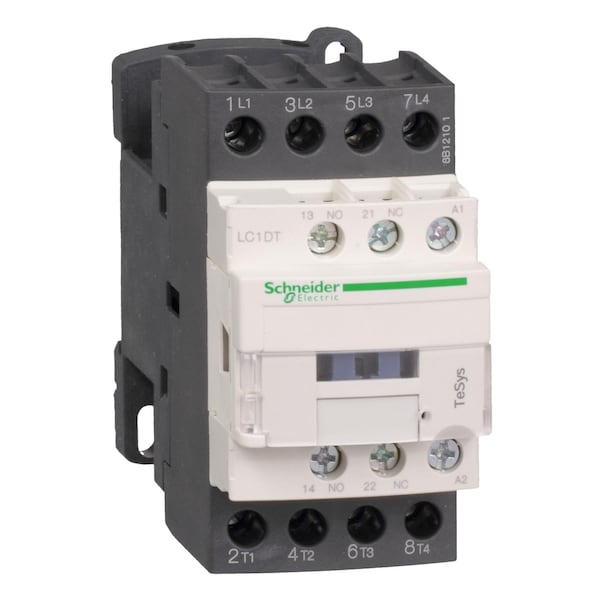

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1DT32B7

  • Zoro # G0569016

product price:
$
201.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
4
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
32 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1DT32B7
Zoro #
G0569016
UPC #
785901407904
Country of Origin
Indonesia
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
4
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
32 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, LROS, BV, DNV, RINA, CSA, UL, GOST, CCC, GL, THIEC 60068-2-30
Series
LC1D, TeSys, TeSys Deca
Application
Resistive Load
Features
Without Built-In Suppressor Module
Tightening Torque
1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)
Rated Insulation Volts
600/690V
Overvoltage Category
CAT III
Signalling Circuit Frequency
25 to 400 Hz
Operating Speed
3600 cycles per hr
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Watts Loss
2 to 3W
Impulse Withstand Voltage
6 kV
Includes Protective Cover
Yes
Switching Current
5 mA (Signalling Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Inrush VA
70 VA
Operating Time
4 to 19 ms (Opening), 12 to 22 ms (Closing)
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Switching Voltage
17 V (Signalling Circuit)
Rated Breaking Capacity
300 A @ 440V
Impedance
2.5 mOhm
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Electrical Durability
1 Mcycles (32 A, AC-1, Less than 440 V)
Non-Overlap Time
1.5 ms
IP Rating
IP20
Rated Short-Time Withstand Current
40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fire Rating
UL 94 V1
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Net Weight
0.425 kg
Mechanical Durability
15 Mcycles
Protective Treatment
THIEC 60068-2-30
Power Dissipation Per Pole
2.5 W AC-1
Fire Resistance
850°C IEC 60695-2-1
Protective Cover
with
Pollution Degree
3
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 8 Gn for 11 ms)
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 690 V IEC 60947-4-1
Maximum Operating Rate
3600 cyc/h 60°C
Climatic Withstand
IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Heat Dissipation
2-3 W at 50/60 Hz
Control Circuit Type
AC 50/60 Hz
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Pole Contact Composition
4 NO
Operating Altitude
0...9842.52 ft (0...3000 m)
Utilisation Category
AC-1, AC-3, AC-3e, AC-4
[Icw] Rated Short-Time Withstand Current
40 A 40°C - 10 min for power circuit, 84 A 40°C - 1 min for power circuit, 145 A 40°C - 10 s for power circuit, 240 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Full Load Current - Inductive
32 A
Full Load Current - Resistive
32 A
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC, 300V DC
Rated Operational Voltage
power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
Rated Operational Current
32 A (at <60°C) at <= 440 V AC AC-1 for power circuit
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
Control Circuit Voltage
24 V AC 50/60 Hz
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
Maximum Operating Temperature
140 Degrees F
Inrush Power in VA
70-70 VA 60 Hz cos phi 0.75 (at 20°C), 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Description

The Schneider Electric IEC Magnetic Contactor is a non-reversing, 4-pole switching device (4P) with a 24 V AC coil and 1NC/1NO auxiliary contact (mechanically linked 1 NO + 1 NC). It uses screw clamp terminals for control and power circuits and is part of the TeSys Deca LC1D family, rated for switching power circuits within specified parameters.

Coil and control: 24 V AC coil; control circuit 50/60 Hz

  • Main and auxiliary contacts: 4 NO main contacts; 1NC/1NO auxiliary (mechanically linked 1 NO + 1 NC)
  • Electrical ratings: Ie 32 A (AC-1) at ≤440 V; Rated making 140 A (AC signalling), 250 A (DC signalling), 300 A @ 440 V (Power Circuit); Rated voltage up to 690 V AC / 300 V DC
  • Terminals: Screw Clamp
  • Protection and enclosure: IP20 front face; includes protective cover
  • Environment and materials: Mercury Free, PVC Free, Toxic Heavy Metal Free
  • Mechanical and electrical durability: 15 Mcycles mechanical durability; shock 8 G (open) / 15 G (closed); vibration 4 G (closed) / 2 G (open); operating temperature -40 to 60°C (60-70°C derating)
  • Thermal and power characteristics: Heat dissipation 2–3 W; hold VA 7.5 VA (60 Hz, 20°C); inrush VA 70 VA
  • Impulse and insulation: Impulse withstand 6 kV; rated insulation voltages up to 600/690 V
  • Physical dimensions and weight: Height 91 mm; Width 45 mm; Depth 99 mm; Net weight 0.425 kg
  • Mounting and installation: Mounting support Plate, Rail
  • Standards and certifications: EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 508; CSA C22.2 No 14; plus listed certifications (as applicable)
  • Reversing and series: Non-Reversing; Series LC1D; Range TeSys Deca
  • Associated fuse ratings: 10 A gG ( signalling circuit ); 50 A gG at ≤690 V (Type 1 Power Circuit); 35 A gG at ≤690 V (Type 2 Power Circuit)
