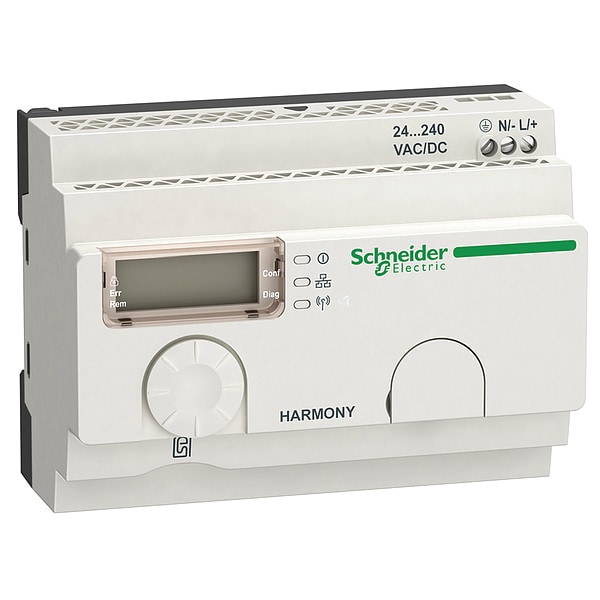

- Item
- Hub Wireless
- Power Rating
- 4 W max
- Material
- Plastic
- Voltage
- 24 to 240V AC/DC
- Color
- Black, Green
- For Use With
- Harmony XB5R Series
- Features
- Harmony Hub Wireless, Mercury Free
- Standards
- CSA C22.2 No 14, EN 62311, EN/IEC 60950-1, EN/IEC 61131-2, ETSI EN 300 328, ETSI EN 300 440-2, UL 508
- Compatible with Series
- XB5R
- Compatible Product Type
- Contact Blocks, Push Buttons
- Ip Degree Of Protection
- IP20 IEC 60529 casing) || IP20 terminals)
- Short-Circuit Protection
- 16 A GB2 circuit breaker
- Response Time
- < 30 ms
- Housing Material
- self-extinguishing plastic
- Operating Altitude
- 0 to 6561.68 ft (0 to 2000 m)
- [Us] Rated Supply Voltage
- 24 to 240 V AC/DC 50/60 Hz - 10 to 10 %
- Pollution Degree
- 2 IEC 60664-1
- Breaking Capacity
- 750 VA, 15 W
- Surge Withstand
- 1 kV differential mode IEC 61000-4-5 || 2 kV common mode IEC 61000-4-5
- Control Circuit Frequency
- 50 to 60 Hz +/- 10 %
- Antenna Gain
- 0 dBi
- Device Short Name
- ZBRN2
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Immunity To Microbreaks
- 10 ms
- Shock Resistance
- 10 gn 16 ms) 6000 shocks IEC 60068-2-27
- Radio Channels Utilisation
- Less than or Equal to 60 devices
- Status Led
- 1 LED Green power ON || 1 LED Yellow communication network || 5 LEDs Red function mode || 1 LED green and yellow reception signal
- Electromagnetic Compatibility
- 1.2/50µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) IEC 61000-4-5 || immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11
- Vibration Resistance
- +/- 3.5 mm 5-14 Hz) IEC 60068-2-6 || 1 gn 5-150 Hz) on panel mounting IEC 60068-2-6 || 2 gn 8-150 Hz) on DIN rail IEC 60068-2-6
- Channels Utilisation
- <= 60 devices
- Radio Agreement
- ANATEL, type III ETSI EN 301 489-3 || FCC, category 2 ETSI EN 300 440-1 || ICASA || RSS, category 1 ETSI EN 300 440-1 || SRRC
- Antenna Type
- integrated
- Ambient Air Temperature For Storage
- -40-70°C
- Storage Altitude
- 0-3000 m
- Product Specific Application
- Wireless Schneider Electric devices ecosystem
- Electrical Connection
1 conductor cable 0.2-4 mm² - AWG 24 to AWG 12 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.2-1.5 mm² - AWG 24 to AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.2-0.75 mm² - AWG 24 to AWG 14 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.2-2.5 mm² - AWG 24 to AWG 18 - flexible - with cable end IEC 60947-1
- Transmission Frequency
- 2405-2480 MHz
- Rated Supply Voltage
- 24 to 240 V AC/DC 50/60 Hz - 10 to 10%
- Relative Humidity
- 90-90 % -25-55°C, without condensation ETSI EN 300 440-1
- Rated Short-Duration Power Frequency Withstand Voltage
- 1.5 kV 50 Hz EN/IEC 60947-5-1
- Topology
- devices linked by daisy-chaining or tap junctions
- Parity
- no || even || odd
- Dielectric Strength
- 3000 V between input and output AC || 4250 V between input and output DC || 1500 V between input and ground AC || 2150 V between input and ground DC
- Maximum Radio Communication Distance
- 328.08 ft (100 m) in free field; 820.21 ft (250 m) if a relay antenna is located between the transmitter and Harmony Hub; 196.85 ft (60 m) if an external antenna is connected to Harmony Hub; 82.02 ft (25 m) with Harmony Hub installed in a metal housing or in a closed metal enclosure
- Communication Port Protocol
- Modbus client application
- Data Storage Equipment
- SD card
- Maximum Power Consumption In W
- 4 W AC/DC
- Radio Response Time
- Less than 30 ms
- Operating Position
- any position
- Data Format
- 7 or 8 bits, 1 or 2 stop bits
- Integrated Connection Type
- 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2 to 115.2 kbauds, 2 twisted shielded pairs
- Function Of Module
- Zigbee green power concentrator
- Tightening Torque
- 0.35-0.4 N.m EN/IEC 60947-1 || 3.09-3.54 lbf.in EN/IEC 60947-1
- Mounting Support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715 || mounting plate
- Product Or Component Type
- Harmony Hub wireless/Serial Line gateway
- Product Certifications
- GOST || CE || UL || C-tick || CSA || CCC
- Maximum Sensing Distance
- 100 m in free field || 250 m if a relay antenna is located between the transmitter and Harmony Hub || 60 m if an external antenna is connected to Harmony Hub || 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure
