- Item
- Push Button Operator
- Push Button Style
- Flush
- Action
- Momentary / Momentary
- Operator Illumination
- Non-Illuminated
- Head Color
- Green
- Head Material
- Plastic
- Terminal Connection
- Screw Clamp
- Standards
- Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
- Shape
- Rectangular
- Contact Form
- 1NO/1NC
- Type of Operator
- (1) Extended Button, (1) Flush Button
- Number of Heads
- 2
- IP Rating
- IP67, IP69, IP69K
- Legend
- I/O
- NEMA Rating
- 13, 4X
- Contact Rating
- 3A @ 240V AC/6A @ 120V AC/10A @ 600V AC
- Legend/Background Color
- White/Green, White/Red
- AC Contact Rating
- 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- Bezel Material
- Plastic
- Number of Operators
- 2
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Series
- XB5
- Legend Color
- White
- Product Type
- Multihead Operators
- Mechanical Durability
- 1000000 cycles
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Electrical Reliability
- Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 || IP69K
- Fixing Collar Material
- plastic
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Operating Force
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Operating Travel
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Contacts Type And Composition
- 1 NO + 1 NC
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 60947-1
- Head Type
- standard
- Shape Of Signaling Unit Head
- rectangular
- Device Short Name
- XB5
- Protective Treatment
- TH
- Ambient Air Temperature For Storage
- -40-70°C
- Overvoltage Category
- class II IEC 60536
- Colour Of Marking
- white marking when green, red or black caps || black marking when white caps
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Durability
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Operators Description
- green ''I'' - red ''O''
- Contact Operation
- slow-break
- Operator Profile
- 1 flush - 1 projecting push-buttons, green flush, I white) || red projecting, O white)
- Contacts Usage
- standard contacts
- [Ui] Rated Insulation Voltage
- 600 V 3)EN 60947-1
- Contacts Material
- silver alloy (Ag/Ni)
- Product Or Component Type

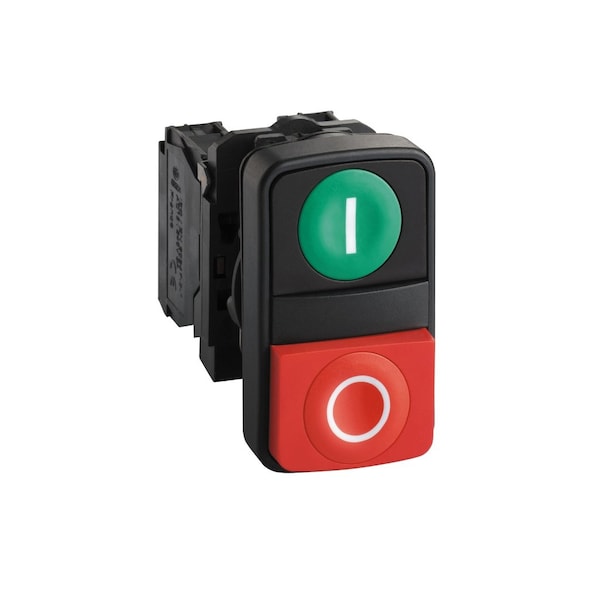

- double-headed push-button
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Ik Degree Of Protection
- IK03 IEC 50102
- Device Presentation
- complete product
- Ambient Air Temperature For Operation
- -40-70°C
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Product Certifications
- CSA || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || BV
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Resistance Properties
- Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
- Operator Material
- Plastic
- Legend Background Color
- Green/Red
- NEMA Enclosure Rating
- 13, 4X
- Operating Temperature - Minimum
- -40 Degrees F
- Number of Indicator Lights
- 0
- Mechanical Operating Durability
- 1.00 x 10^6
- Operating Temperature - Maximum
- 158 Degrees F
- Operator Voltage Rating - Maximum
- 600 V AC/DC
