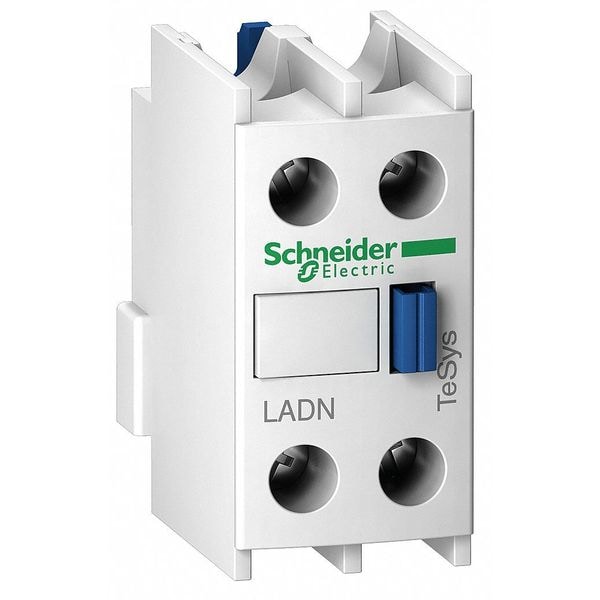

IEC Auxiliary Contact

Mfr # LADN02
Zoro # G2286672

$23.99

Key Features

Number of NO Aux. Contacts

Number of NC Aux. Contacts

Amps

10 A

Mounting

Front

For Use With

Schenider LC1F Contactors

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

LADN02

Zoro #

G2286672

UPC #

785901213642

Country of Origin

France

Dimensions

Height

48 mm

Depth

42 mm

Width

26 mm

Details

Item

Auxiliary Contact Block

Number of NO Aux. Contacts

Number of NC Aux. Contacts

Amps

10 A

Mounting

Front

For Use With

Schenider LC1F Contactors

Number of Contacts

Max. Contact Blocks (No.)

Voltage

690V AC

Color

Dark Gray

Standards

EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, CB, CCC, EAC, UKCA

Features

Mercury Free, Toxic Heavy Metal Free

Terminal Connection Type

Screw Clamp Terminals

Number of Normally Closed Contacts

Current AC

10 A

Number of Normally Open Contacts

Maximum Voltage Rating

690V AC

IP Rating

IP20

Compatible with Series

TeSys, TeSys Deca, TeSys F

Environmental Characteristic

Normal environment

Product Certifications

CB; UL; CSA; CCC; EAC; UKCA

IP Degree Of Protection

IP20 conforming to IEC 60529

Contacts Operation

Instantaneous

Product Name

TeSys Deca

Ambient Air Temperature For Storage

-76 to 176Â°F (-60 to 80Â°C)

Insulation Resistance

Greater than 10 MOhm

Minimum Switching Current

5 mA

Tightening Torque

15.05 lbf.in (1.7 N.m) flat 6 mm; 15.05 lbf.in (1.7 N.m) Philips No 2; 15.05 lbf.in (1.7 N.m) pozidriv No 2

Rated Operational Voltage

690 V AC 25 to 400 Hz

Operating Altitude

9842.52 ft (3000 m)

Non-Overlap Time

1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact

IRMS Rated Making Capacity

140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1

Mechanical Durability

30 Mcycles

Protective Treatment

TH IEC 60068

Ambient Air Temperature For Operation

23 to 140Â°F (-5 to 60Â°C)

Conventional Free Air Thermal Current

10 A (at 140Â°F (60Â°C))

Minimum Switching Voltage

17 V

Pole Contact Composition

2 NC

Connections - Terminals

screw clamp terminals 1 0.00 to 0.01 inÂ² (1 to 4 mmÂ²)flexible with cable end; screw clamp terminals 1 0.00 to 0.01 inÂ² (1 to 4 mmÂ²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 inÂ² (1 to 2.5 mmÂ²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 inÂ² (1 to 4 mmÂ²)flexible without cable end; screw clamp terminals 1 0.00 to 0.01 inÂ² (1 to 4 mmÂ²)rigid without cable end; screw clamp terminals 2 0.00 to 0.01 inÂ² (1 to 4 mmÂ²)rigid without cable end

Permissible Short-Time Rating

100 A 1 s; 120 A 500 ms; 140 A 100 ms

Protection Type

GG fuse 10 A

Rated Operational Current

6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13

Range Compatibility

TeSys D CAD; TeSys D LC1D; TeSys F LC1F; TeSys F CR1F; TeSys Deca CAD; TeSys Deca LC1D

Rated Insulation Voltage

690 V IEC 60947-5-1; 600 V UL; 600 V CSA

Description

Auxiliary Contact Block, Current AC 10 A, Number of Contacts 2, Mounting Front, Number of Normally Open Contacts 0, Maximum Voltage Rating 690V AC, Number of Normally Closed Contacts 2, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys, TeSys Deca, TeSys F, IP Rating IP20
