  13. Pushbutton Enclosure, 22mm, 6 Holes, Steel
Shop All Push Button Enclosures
Wiegmann

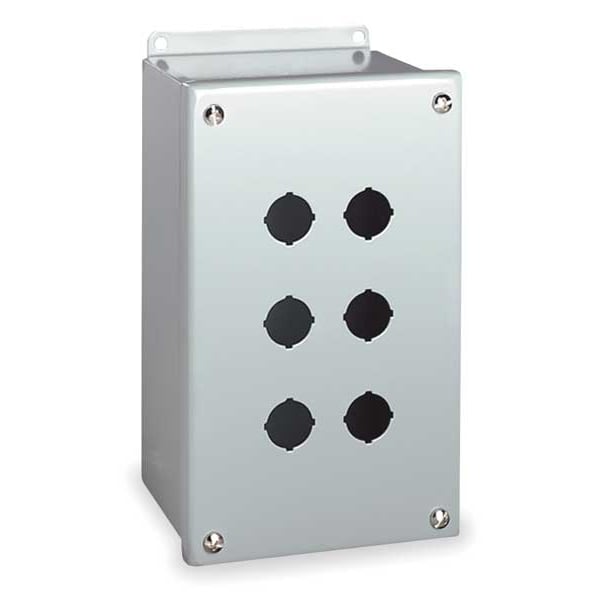

Pushbutton Enclosure, 22mm, 6 Holes, Steel

original price: $176.34
5% off
new price: $166.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Columns 2
  • Hole Size 22 mm
  • Material Carbon Steel
  • Number of Holes 6
  • Conduit Size No Conduit Entrance Holes Provided
See all product information

Product Information

Dimensions

Hole Size 22 mm
Conduit Size No Conduit Entrance Holes Provided
Dimensions 8.50 in H x 5.00 in W x 4.25 in D
Height 8.5 in
Width 5 in
Depth 4.25 in
Actual Depth 4.25 in
Actual Height 8.500 in
Overall Height 9 in
Panel Cutout Diameter 22 mm
Compatible Conduit Size - Maximum No Conduit Entrance Holes Provided
Overall Depth 4 in
Overall Width 5 in

Details

Number of Columns 2
Item Push Button Enclosure
Material Carbon Steel
Number of Holes 6
NEMA Rating 12, 13
Color Gray
Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket
Standards cULus, UL Listed
Type Miniature
Mounting Style External Plates
Construction Continuously Welded Seams
Finish Type Polyester Powder
Certified Listed cULus
Mounting Type External Mounting Plates
Cubic Capacity 180 cu.in
Mounting External Mounting Plates
Listings UL, CSA
Cover Type Pushbutton;Screw
Standard cULus
Application Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water.
Series PBGX
UL Listed Yes
Features Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided.
NEMA Enclosure Rating 12

Description

Push Button Enclosure, Number of Columns 2, Number of Holes 6, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.50 in H x 5.00 in W x 4.25 in D, Hole Size 22 mm, Material Carbon Steel, Height 8.5 in, Width 5 in, Depth 4.25 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Miniature, Mounting Style External Plates, Standards cULus, UL Listed
