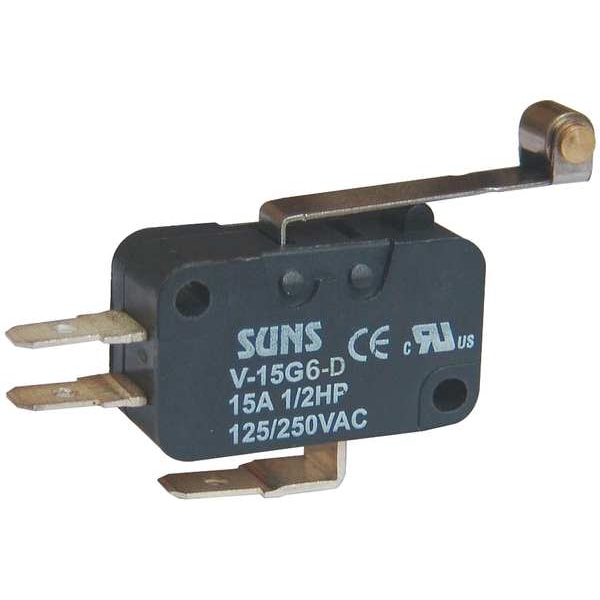

Miniature Snap Action Switch, Lever, Long, Roller Actuator, SPDT, 15 A at 240 V AC Contact Rating

  • Mfr # 5JEC6

  • Zoro # G0837742

product price:
$
6.29
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1 in
Height - Snap Action Switch
0.62 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5JEC6
Zoro #
G0837742
UPC #
190735527597
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1 in
Height - Snap Action Switch
0.62 in
Width - Snap Action Switch
1.09 in
Depth - Snap Action Switch
0.41 in
Height
0.625"
Depth
0.406"
Length
1.09"
Mounting Dimension
0.87" Centers
Actuator Length
1.00"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Body Width
1.09 in
Body Height
0.62 in
Lever Actuator Length
1 in
Overall Height
0.62 in
Overall Depth
0.41 in
Overall Width
1.09 in
Body Depth
0.41 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Over Travel
0.087 in
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Terminal Type
3/16" Quick Connect
Current Rating
15A
Contact Form
1NO/1NC
Differential Travel
0.031 in
Housing Material
Thermoplastic Case and Cover
Watertight - Snap Action Switch
No
Standards
CE, CSA, UL Listed
Operating Temp. Range
-13 Degrees to 185 Degrees F
Max. Pretravel
0.126 in
Type of Actuator
Long Roller Lever
Voltage Rating
125/250VAC
Release Force
1.16 ozf
Operating Force
4.41 oz
Series
V
AC Contact Rating
15 A @ 240 V
Actuator Style
Roller Lever
Overtravel
0.087 in
Pretravel
0.126 in
Center Mounting Hole Distance
0.87 in
Operating Temperature - Maximum
185 Degrees F
Body Material
Thermoplastic
Operating Force - Minimum
1.23 N
Operating Force - Maximum
4.41 ozf
Operating Temperature - Minimum
-13 Degrees F
Differential Travel - Maximum
0.031 in
Electrical Connection
Quick Connect
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Miniature Snap Action Switch, Lever, Long, Roller, AC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1 in, Height - Snap Action Switch 0.62 in, Width - Snap Action Switch 1.09 in, Depth - Snap Action Switch 0.41 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V
