15 to 25 msec (Coil De-Energisation and NC Closing), 16 to 24 msec (Coil De-Energisation and NO Opening), 47 to 63 msec (Coil Energisation and NC Opening), 53 to 72 msec (Coil Energisation and NO Closing)
Item
IEC Control Relay
Contact Material
Silver Nickel
Power Consumption - Relay
3.0 VA
Contact Amp Rating (Resistive)
10A
Features
3.03 in H x 1.77 in W x 3.66 in D
Coil Rating
3VA Inrush, 3VA Sealed
Standards
CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed
Contact Form
3NO/2NC
Mounting
Din Rail/Panel
Range
TeSys || TeSys Deca
Time Constant
28 ms
[Ue] Rated Operational Voltage
<= 690 V AC 25...400 Hz
Connections - Terminals
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end
Associated Fuse Rating
10 A gG IEC 60947-5-1
Protective Treatment
TH IEC 60068
Minimum Switching Voltage
17 V
Mounting Support
rail || plate
Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
[Ith] Conventional Free Air Thermal Current
10 A 60°C
Hold-In Power Consumption In W
5.4-5.4 W 20°C
Operating Time
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening || 47...63 ms coil energisation and NC opening || 15...25 ms coil de-energisation and NC closing
Non-Overlap Time
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Product Name
TeSys CAD
Control Circuit Voltage Limits
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Mechanical Robustness
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Operating Altitude
0...9842.52 ft (0...3000 m)
Minimum Switching Current
5 mA
Ip Degree Of Protection
IP2X front face VDE 0106
Pole Contact Composition
3 NO + 2 NC
Ambient Air Temperature For Storage
-60-80°C
Insulation Resistance
> 10 MOhm
Control Circuit Type
DC standard
Ambient Air Temperature For Operation
-40-60°C || 60-70°C with derating
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Inrush Power In W
5.4-5.4 W 20°C)
[Uc] Control Circuit Voltage
24 V DC
[Ui] Rated Insulation Voltage
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Tightening Torque
1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
[Icw] Rated Short-Time Withstand Current
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Utilisation Category
DC-13 || AC-15 || AC-14
Device Short Name
CAD
Maximum Operating Rate
180 cyc/mn
Product Or Component Type
control relay
Mechanical Durability
30 Mcycles
Contactor Application
control circuit
Irms Rated Making Capacity
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Mounting Style
DIN Rail and Surface
Input Voltage
24V DC
Contact Rating (DC)
2 A @ 125/250/600V
Coil Voltage
24V DC
IP Rating
IP2X
Power Consumption
5.4 W
Number of Pins
12
Relay Style
IEC
Current Rating
10 A
Weight
1.28 lb
Compatible with Series
TeSys D Control Relays
Maximum Operating Temperature
140 Degrees F
Electrical Connection
Screw Clamp
Minimum Operating Temperature
-40 Degrees F
Contact Rating (AC)
10 A @ 120/240/480/600V
Conventional Free Air Thermal Current
10 A (at 140°F (60°C))
Rated Short Time Withstand Current
100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms
Rated Insulation Voltage
600 V UL; 600 V CSA; 690 V IEC 60947-5-1
Rated Operational Voltage
Less than or Equal to 690 V AC 25 to 400 Hz
Description

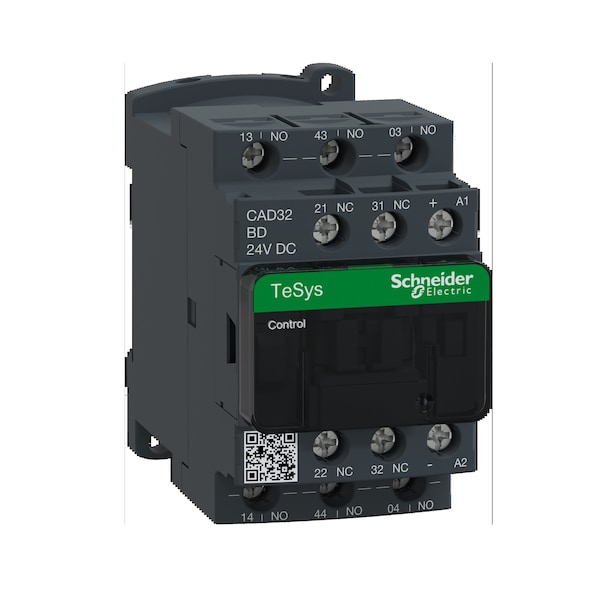

IEC Control Relay, Current Rating 10 A, Contact Form 3NO/2NC, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 5.4 W, IP Rating IP2X, Compatible with Series TeSys D Control Relays, Maximum Operating Temperature 140 Degrees F, Body Depth 3.66 in, Body Height 3.03 in, Body Width 1.77 in, Contact Material Silver Nickel
