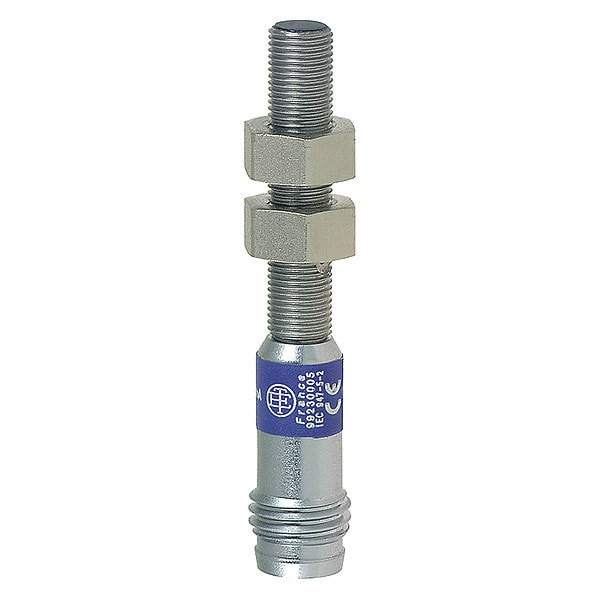

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M8, 3 Wires, Shielded

  • Mfr # XS1N05PA311S
  • Zoro # G0563915
product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
0 to 0.6 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
5 to 24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XS1N05PA311S
Zoro #
G0563915
UPC #
785901873938
Country of Origin
France
Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
0 to 0.6 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
5 to 24V DC
Electrical Connection
M8
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
1 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
5-24V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, UL Listed
Proximity Sensor Electrical Connection
Male Connector M8, 3 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
IP Rating
IP67
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 Degrees to 70 Degrees C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Maximum Delay Recovery
1 ms
Series
XS1
Storage Temp. Range
-40-85 °C
Maximum Delay Response
1 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Application
general purpose
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
5-30 V DC
Switching Capacity
<= 100 mA overload and short-circuit protection
Maximum Delay First Up
5 ms
Number of Pins
3
Body Stainless Steel Grade
303
Sensing Method
Inductive
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
Features
Overload Protection, Short Circuit Protection
Switching Frequency
5,000 Hz
Container Type
Cylindrical
Sensor Body Style
Cylindrical

Dimensions

Overall Diameter
8 mm
Length
42 mm
Overall Height
42 mm
Fits Chest Size
Overload Protection, Short Circuit Protection

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, Standards CE, CSA, UL Listed
