  13. IEC Control Relay, 5NO, 120VAC, 10A

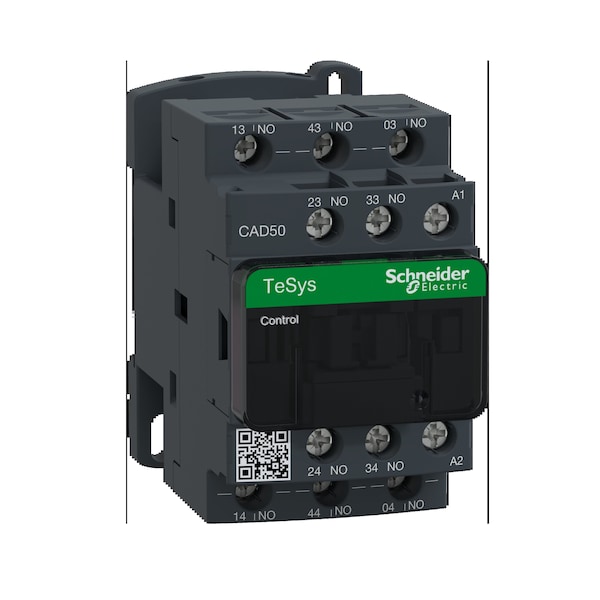

Schneider Electric IEC Control Relay, 5NO, 120VAC, 10A CAD50G7 - main

IEC Control Relay, 5NO, 120VAC, 10A

  • Mfr # CAD50G7

  • Zoro # G1307643

product price: $84.59
/ea
Free Shipping & Returns

Key Features

Item - Relay
IEC Style Control Relay
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Number of Pins - Relay
12
Contact Form - Relay
(5) SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CAD50G7
Zoro #
G1307643
UPC #
785901204909
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.03 in
Body Width - Relay
1.77 in
Body Depth - Relay
3.15 in
Body Height - Relay
2.91 in
Depth
84 mm
Width
45 mm
Height
77 mm
Body Width
1.77 in
Body Depth
3.31 in
Body Height
3.03 in
Overall Height
3.03 in

Details

Item - Relay
IEC Style Control Relay
Coil Volts
120V AC
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Number of Pins - Relay
12
Contact Form - Relay
(5) SPST-NO
Mounting - Relay
DIN Rail, Surface
Power Consumption - Relay
8.0 VA
Contact Material
Silver Nickel
Mounting
Din Rail/Panel
Contact Form
5NO
Standards
CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed
Coil Rating
70VA Inrush, 8VA Sealed
Response Time
12 to 22 msec (Coil Energisation and NO Closing), 4 to 12 msec (Coil De-Energisation and NO Opening)
Item
IEC Control Relay
Hz - Electrical
50 Hz, 60 Hz
Hz
50/60
Contact Amp Rating (Resistive)
10A
Product Name
TeSys CAD
Non-Overlap Time
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Maximum Operating Rate
180 cyc/mn
Contactor Application
control circuit
Control Circuit Type
AC 50/60 Hz
Product Or Component Type
control relay
Operating Altitude
0...9842.52 ft (0...3000 m)
Utilisation Category
AC-14 || AC-15 || DC-13
Tightening Torque
1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
Hold-In Power Consumption In Va
8-8 VA 50 Hz 20°C)
Mechanical Robustness
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Associated Fuse Rating
10 A gG IEC 60947-5-1
Protective Treatment
TH IEC 60068
Control Circuit Voltage Limits
0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
[Icw] Rated Short-Time Withstand Current
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Ambient Air Temperature For Storage
-60-80°C
Minimum Switching Current
5 mA
[Ui] Rated Insulation Voltage
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Minimum Switching Voltage
17 V
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Mechanical Durability
30 Mcycles
Range
TeSys || TeSys Deca
Device Short Name
CAD
Pole Contact Composition
5 NO
[Uc] Control Circuit Voltage
120 V DC
Connections - Terminals
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end
Irms Rated Making Capacity
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current
10 A 60°C
Ambient Air Temperature For Operation
-40-60°C || 60-70°C with derating
Operating Time
12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening
[Ue] Rated Operational Voltage
<= 690 V AC 25...400 Hz
Insulation Resistance
> 10 MOhm
Inrush Power In Va
70-70 VA 50 Hz 20°C)
Ip Degree Of Protection
IP2X front face VDE 0106
Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Mounting Support
plate || rail
Frequency
50/60 Hz
Electrical Connection
Screw Clamp
Maximum Operating Temperature
140 Degrees F
Coil Voltage
120V AC
Input Voltage
120V AC
Weight
1.28 lb
Power Consumption
8 VA
Relay Style
IEC
Number of Pins
12
Current Rating
10 A
Minimum Operating Temperature
-40 Degrees F
IP Rating
IP2X
Compatible with Series
TeSys D Control Relays
Contact Rating (DC)
2 A @ 125/250/600V
Mounting Style
DIN Rail and Surface
Contact Rating (AC)
10 A @ 120/240/480/600V

Description

IEC Control Relay, Current Rating 10 A, Contact Form 5NO, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 120V AC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 8 VA, IP Rating IP2X, Compatible with Series TeSys D Control Relays, Maximum Operating Temperature 140 Degrees F, Frequency 50/60 Hz, Body Depth 3.31 in, Body Height 3.03 in, Body Width 1.77 in, Contact Material Silver Nickel
