  13. IEC Control Relay, 5NO, 24VDC, 10A

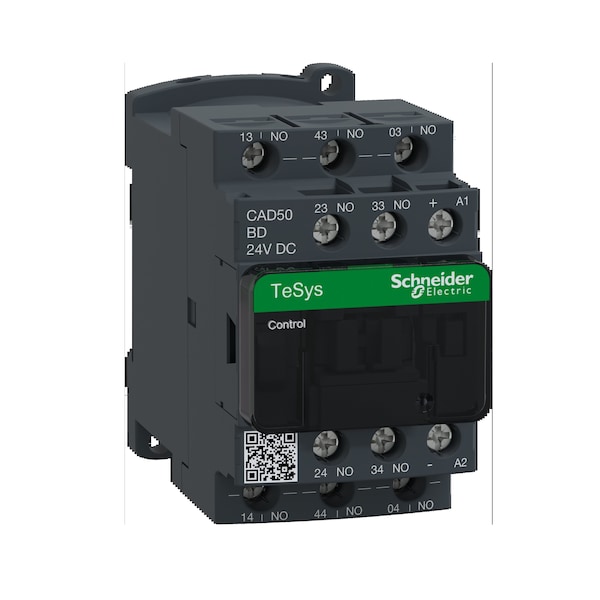

Schneider Electric IEC Control Relay, 5NO, 24VDC, 10A CAD50BD - main

IEC Control Relay, 5NO, 24VDC, 10A

  • Mfr # CAD50BD

  • Zoro # G3461972

product price: $168.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
IEC Style Control Relay
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Number of Pins - Relay
12
Contact Form - Relay
(5) SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CAD50BD
Zoro #
G3461972
UPC #
785901204893
Country of Origin
Indonesia

Dimensions

Body Width - Relay
1.77 in
Body Height - Relay
2.91 in
Body Depth - Relay
4.72 in
Overall Height - Relay
3.03 in
Height
77 mm
Width
45 mm
Depth
93 mm
Overall Height
3.03 in
Body Depth
3.66 in
Body Width
1.77 in
Body Height
3.03 in

Details

Item - Relay
IEC Style Control Relay
Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Number of Pins - Relay
12
Contact Form - Relay
(5) SPST-NO
Mounting - Relay
DIN Rail, Surface
Item
IEC Control Relay
Contact Form
5NO
Contact Amp Rating (Resistive)
10A
Standards
CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed
Mounting
Din Rail/Panel
Coil Rating
70VA Inrush, 8VA Sealed
Power Consumption - Relay
8.0 VA
Contact Material
Silver Nickel
Response Time
16 to 24 msec (Coil De-Energisation and NO Opening), 53 to 72 msec (Coil Energisation and NO Closing)
[Ui] Rated Insulation Voltage
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
[Ue] Rated Operational Voltage
<= 690 V AC 25...400 Hz
Operating Time
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening
Control Circuit Voltage Limits
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Connections - Terminals
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end
[Icw] Rated Short-Time Withstand Current
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Protective Treatment
TH IEC 60068
Contactor Application
control circuit
Irms Rated Making Capacity
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Mechanical Robustness
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Ip Degree Of Protection
IP2X front face VDE 0106
Control Circuit Type
DC standard
Product Name
TeSys CAD
Pole Contact Composition
5 NO
Minimum Switching Voltage
17 V
Range
TeSys || TeSys Deca
[Ith] Conventional Free Air Thermal Current
10 A 60°C
Ambient Air Temperature For Storage
-60-80°C
Associated Fuse Rating
10 A gG IEC 60947-5-1
[Uc] Control Circuit Voltage
24 V DC
Operating Altitude
0...9842.52 ft (0...3000 m)
Ambient Air Temperature For Operation
-40-60°C || 60-70°C with derating
Device Short Name
CAD
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Hold-In Power Consumption In W
5.4-5.4 W 20°C
Minimum Switching Current
5 mA
Mechanical Durability
30 Mcycles
Insulation Resistance
> 10 MOhm
Inrush Power In W
5.4-5.4 W 20°C)
Mounting Support
rail || plate
Time Constant
28 ms
Non-Overlap Time
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Utilisation Category
AC-14 || DC-13 || AC-15
Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Product Or Component Type
control relay
Tightening Torque
1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
Maximum Operating Rate
180 cyc/mn
Electrical Connection
Screw Clamp
Mounting Style
DIN Rail and Surface
Minimum Operating Temperature
-40 Degrees F
Coil Voltage
24V DC
IP Rating
IP2X
Power Consumption
5.4 W
Current Rating
10 A
Input Voltage
24V DC
Maximum Operating Temperature
140 Degrees F
Compatible with Series
TeSys D Control Relays
Contact Rating (AC)
10 A @ 120/240/480/600V
Contact Rating (DC)
2 A @ 125/250/600V
Weight
1.28 lb
Relay Style
IEC
Number of Pins
12

Description

IEC Control Relay, Current Rating 10 A, Contact Form 5NO, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 5.4 W, IP Rating IP2X, Compatible with Series TeSys D Control Relays, Maximum Operating Temperature 140 Degrees F, Body Depth 3.66 in, Body Height 3.03 in, Body Width 1.77 in, Contact Material Silver Nickel, Input Voltage 24V DC
