- MFR #
- LC1K0901P7
- Zoro #
- G0849418
- UPC #
- 785901676409
- Country of Origin
- Indonesia
- Item

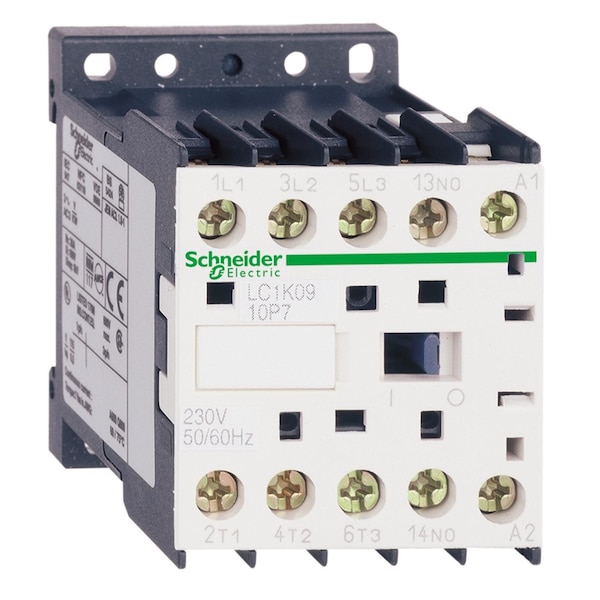

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC
- Coil Voltage
- 230V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 9 A
- Full Load Amps-Resistive
- 20 A
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 1
- Standards
- EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016
- Application
- Motor Control, Resistive Load
- Operating Speed
- 3600 cycles per hr
- Signalling Circuit Frequency
- Less Than 400 Hz
- Overvoltage Category
- CAT III
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Mechanical Durability
- 10 Mcycles
- Fire Rating
- UL 94 V1, NF F 16-101, NF F 16-102
- Environmental Attributes
- Mercury Free, Toxic Heavy Metal Free
- Fuse Amps
- 25 A (Power Circuit), 10 A (Signalling Circuit)
- Watts Loss
- 1.3W
- Impedance
- 3 mOhm
- Switching Current
- 5 mA (Signalling Circuit)
- Electrical Durability
- 1.3 Mcycles 9 A AC-3 <= 440 V, 1.3 Mcycles 9 A AC-3e <= 440 V, 0.16 Mcycles 20 A AC-1 <= 690 V, 0.02 Mcycles 54 A AC-4 <= 440 V
- Operating Time
- 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing)
- Hold VA
- 4.5 VA
- Shock Resistance
- 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)
- Rated Breaking Capacity
- 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Control Circuit Voltage Limits
- Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C)
- Rated Making Capacity
- 110 A
- Inrush VA
- 30 VA
- Switching Voltage
- 17 V (Signalling Circuit)
- Max. Operating Watts
2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW 380 to (at 415V AC 50/60 Hz AC-3), 4 kW (at 440V AC 50/60 Hz AC-3), 4 kW (at 480V AC 50/60 Hz AC-3), 4 kW (at 500 to 600V AC 50/60 Hz AC-3), 4 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 415V AC 50/60 Hz AC-3e), 4 kW (at 440V AC 50/60 Hz AC-3e), 4 kW (at 480V AC 50/60 Hz AC-3e), 4 kW (at 500 to 600V AC 50/60 Hz AC-3e), 4 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- Non Overlap Distance
- 0.5 mm
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Utilisation Category
- AC-3, AC-3e, AC-1, AC-4
- Maximum Operating Rate
- 3600 cyc/h
- Contactor Application
- resistive load, motor control
- Heat Dissipation
- 1.3-1.3 W
- Pole Contact Composition
- 3 NO
- Auxiliary Contacts Type
- instantaneous 1 NC
- Protective Treatment
- TC IEC 60068, TC DIN 50016
- Device Application
- control
- [Icw] Rated Short-Time Withstand Current
90 A 50°C - 1 s for power circuit, 85 A 50°C - 5 s for power circuit, 80 A 50°C - 10 s for power circuit, 60 A 50°C - 30 s for power circuit, 45 A 50°C - 1 min for power circuit, 40 A 50°C - 3 min for power circuit, 20 A 50°C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit
- Control Circuit Type
- AC 50/60 Hz
- Mechanical Robustness
shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Full Load Current - Inductive
- 9 A
- Full Load Current - Resistive
- 20 A
- Conventional Free Air Thermal Current
- 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
- Rated Operational Voltage
- power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
- Control Circuit Voltage
- 230 V AC 50/60 Hz
- Impulse Withstand Voltage
- 8 kV
- Series
- TeSys
- Rated Operational Current
- 9 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 9 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
- Inrush Power in VA
- 30-30 VA (at 20°C)
