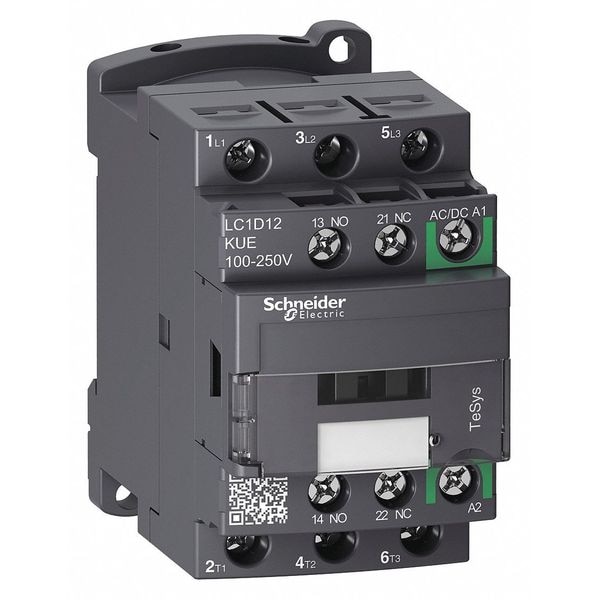

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D12KUE
  • Zoro # G6555530

product price:
$
132.04
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
25 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D12KUE
Zoro #
G6555530
UPC #
03606480987687
Country of Origin
Korea, Republic of
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
25 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
10 hp
Reversing
No
Frame / Series / Class / Code
TeSys
Series
TeSys Deca
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Rated Insulation Volts
690V
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Watts Loss
1.1W
Includes Protective Cover
Yes
Tightening Torque
1.7 Nm
Operating Speed
3600 cycles per hr
Max. Operating Watts
3 kW (at 220 to 230V AC 50 Hz AC-3), 5.5 kW (at 380 to 400V AC 50 Hz AC-3), 5.5 kW (at 415V AC 50 Hz AC-3), 5.5 kW (at 440V AC 50 Hz AC-3), 7.5 kW (at 500V AC 50 Hz AC-3), 7.5 kW (at 660 to 690V AC 50 Hz AC-3), 3 kW (at 220 to 230V AC 50 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50 Hz AC-3e), 5.5 kW (at 415V AC 50 Hz AC-3e), 5.5 kW (at 440V AC 50 Hz AC-3e), 7.5 kW (at 500V AC 50 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Fire Rating
UL 94 V1
Impulse Withstand Voltage
6 kV
Rated Breaking Capacity
250 A @ 440V
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Overvoltage Category
CAT III
Switching Voltage
17 V (Signalling Circuit)
Inrush VA
25 VA
Hold VA
1.6 VA
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit)
Net Weight
0.373 kg
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Application
Motor Control, Resistive Load
Electrical Durability
2.3 Mcycles (11 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2.3 Mcycles (11 A, AC-3e, Less than 440 V)
Signalling Circuit Frequency
25 to 400 Hz
Features
Built-In Bi-Directional Peak Limiting
Mechanical Durability
15 Mcycles
Impedance
2.5 mOhm
Non-Overlap Time
1.5 ms
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Environmental Attributes
Mercury Free, Pollution Degree 3
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
IP Rating
IP20
Minimum Operating Temperature
-40 Degrees F
Mounting Style
DIN Rail, Plate
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 120V AC
1/2 hp
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Embedded Surge Suppressor
No
Contactor Style
IEC
Number of Normally Open Main Contacts
3
Mechanical Operating Durability
15,000,000
Full Load Current - Resistive
25 A
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Phase
Three
Electrical Operating Durability
2,300,000, 800,000
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Single Phase - 240V AC
2 hp
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
12 A
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 600V AC
10 hp
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
3.39 in
Overall Height
3.03 in
Overall Width
1.77 in

Description

Schneider Electric TeSys Deca IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch used to control power circuits in IEC-standard control systems. It is rated for operation within the specified voltage ranges of 100–250 V AC/DC and uses screw clamp terminals. The device includes two auxiliary contacts (1NO/1NC) and is configured as a 3-pole, 3-phase device that does not include an integrated surge suppression feature and has no enclosure.

Key features

  • Poles: 3; Reversing: Non-Reversing
  • Coil Voltage: 100–250 V AC/DC
  • Auxiliary Contacts: 2 total (1NO/1NC)
  • Connection: Screw Clamp Terminals
  • Frame/Series: TeSys Deca (TeSys)
  • Rated Voltage: 690 V AC; Frequency: 50/60 Hz
  • Full Load Amps: Rated for applications within the specified current ratings of inductive 12 A and resistive 25 A at their respective voltages
  • Enclosure: The device is provided without an enclosure
  • IP Rating: IP20
  • Dimensions: 1.77 in W × 3.03 in H × 3.38 in D; Net Weight: 0.373 kg
  • Standards: Complies with listed standards UL, EN/IEC 60947-4-1, and EN/IEC 60947-5-1 (compliance subject to proper installation and use)
  • Other: Impulse Withstand Voltage 6 kV; Non-Overlap Time 1.5 ms; Shocks 15 G (closed) / 10 G (open)
