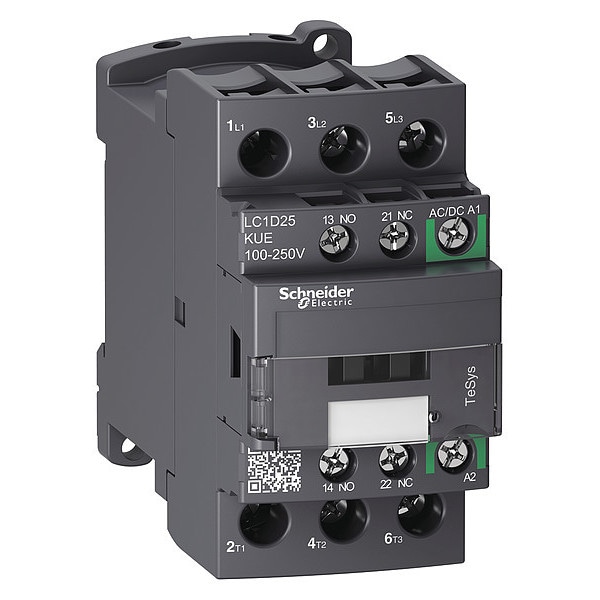

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D25KUE

  • Zoro # G6581482

product price:  $169.77
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1D25KUE
Zoro #
G6581482
UPC #
785901764984
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
3.62 in
Overall Width
1.77 in
Overall Height
3.35 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
Reversing
No
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
20 hp
Series
TeSys Deca
Environmental Attributes
Mercury Free, Pollution Degree 3
Switching Current
5 mA (Signalling Circuit)
Impedance
2 mOhm
Fire Rating
UL 94 V1
Watts Loss
1.1W
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit)
Electrical Durability
2 Mcycles (21 A, AC-3, Less than 440 V); 0.9 Mcycles (40 A, AC-1, Less than 440 V); 2 Mcycles (21 A, AC-3e, Less than 440 V)
Impulse Withstand Voltage
6 kV
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Mechanical Durability
15 Mcycles
Signalling Circuit Frequency
25 to 400 Hz
Max. Operating Watts
5.5 kW (at 220 to 230V AC 50 Hz AC-3), 11 kW (at 380 to 400V AC 50 Hz AC-3), 11 kW (at 415V AC 50 Hz AC-3), 11 kW (at 440V AC 50 Hz AC-3), 15 kW (at 500V AC 50 Hz AC-3), 15 kW (at 660 to 690V AC 50 Hz AC-3), 5.5 kW (at 220 to 230V AC 50 Hz AC-3e), 11 kW (at 380 to 400V AC 50 Hz AC-3e), 11 kW (at 415V AC 50 Hz AC-3e), 11 kW (at 440V AC 50 Hz AC-3e), 15 kW (at 500V AC 50 Hz AC-3e), 15 kW (at 660 to 690V AC 50 Hz AC-3e)
Rated Insulation Volts
690V
Switching Voltage
17 V (Signalling Circuit)
Operating Speed
3600 cycles per hr
Hold VA
1.6 VA
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Features
Built-In Bi-Directional Peak Limiting
Net Weight
0.433 kg
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
IP Rating
IP20
Application
Motor Control, Resistive Load
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Includes Protective Cover
Yes
Rated Breaking Capacity
450 A @ 440V
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Non-Overlap Time
1.5 ms
Inrush VA
25 VA
Overvoltage Category
CAT III
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
15 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Number of Normally Open Main Contacts
3
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 600V AC
20 hp
Electrical Operating Durability
2,000,000, 900,000
Frequency
50/60 Hz
Full Load Current - Inductive
25 A
Phase
Three
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
No
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
15,000,000
Contactor Style
IEC
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Resistive
40 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)

Description

Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a 3-pole, non-reversing, electrically operated switch rated for use in motor control and resistive-load applications within specified parameters. It features a 100–250 V AC/DC coil, auxiliary contacts configured as 1NO/1NC (2 total), and screw clamp terminals. The unit is compatible with DIN rail or plate mounting according to installation instructions, and it includes a protective cover rated as IP20.

Key features

  • Poles/contacts: 3 poles; 3 normally open main contacts; auxiliary contacts 1NO/1NC (2 total)
  • Coil and switching: Coil voltage 100–250 V AC/DC; non-reversing; 50/60 Hz
  • Voltage and making capacity: Voltage and making capacity: rated for operation at voltages up to 690 V AC/DC within specified conditions; rated making capacity 140 A (AC Signalling) / 250 A (DC Signalling) / 450 A @ 440 V (Power Circuit)
  • Currents and loads: Currents and loads: rated for resistive loads up to 40 A and inductive loads up to 25 A under specified conditions
  • Mechanical/electrical durability: Mechanical/electrical durability: mechanical durability of approximately 15 Mcycles; electrical durability based on standard testing within specified load ratings
  • Physical and mounting: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.433 kg; Mounting: DIN Rail, Plate; Mounts On Plate, Rail; Electrical connection: Screw Clamp
  • Enclosure and protection: IP20; Enclosure: Intended for use without an enclosure but includes a protective cover suitable for certain environments; Embedded surge suppressor: No
  • Standards and safety markings: Standards include UL Listed; EN/IEC 60947-4-1; EN/IEC 60947-5-1; CSA; CCC
  • Timing and control: Non-Overlap Time 1.5 ms; Operating times 45–55 ms (Closing), 20–90 ms (Opening)
