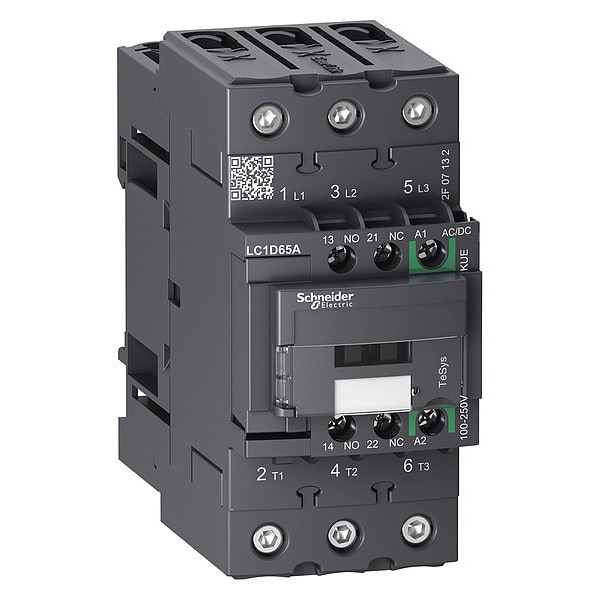

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D65AKUE

  • Zoro # G6575471

product price:  $397.74
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
65 A
Full Load Amps-Resistive
80 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D65AKUE
Zoro #
G6575471
UPC #
00785901001690
Country of Origin
Korea, Republic of

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
2.17 in
Overall Depth
4.72 in
Overall Height
4.8 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
65 A
Full Load Amps-Resistive
80 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
50 hp
Reversing
No
Frame / Series / Class / Code
TeSys
Includes
Everlink Power Connections
Series
TeSys Deca
Net Weight
1.002 kg
Fire Rating
UL 94 V1
Rated Breaking Capacity
1000 A @ 440V
Mechanical Durability
6 Mcycles
Signalling Circuit Frequency
25 to 400 Hz
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Short-Time Withstand Current
110 A (at 40 Degrees C for 10 min Power Circuit), 260 A (at 40 Degrees C for 1 min Power Circuit), 520 A (at 40??C for 10 s Power Circuit), 900 A (at 40? for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Insulation Volts
690V
Impulse Withstand Voltage
6 kV
Max. Operating Watts
18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 415V AC 50 Hz AC-3), 37 kW (at 440V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 440V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e)
Impedance
1.5 mOhm
Environmental Attributes
Mercury Free, Pollution Degree 3
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Voltage
17 V (Signalling Circuit)
Application
Motor Control, Resistive Load
Overvoltage Category
CAT III
Rated Making Capacity
1000 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
IP Rating
IP20
Watts Loss
1.2W
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Switching Current
5 mA (Signalling Circuit)
Features
Built-In Bi-Directional Peak Limiting
Non-Overlap Time
1.5 ms
Electrical Durability
1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V); 1.8 Mcycles (57 A, AC-3e, Less than 440 V)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Operating Speed
3600 cycles per hr
Includes Protective Cover
Yes
Inrush VA
18 VA
Fuse Amps
125 A (Type 1 and 2 Power Circuit), 10 A (Signalling Circuit)
Hold VA
1.8 VA
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Single Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
40 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 240V AC
20 hp
Full Load Current - Inductive
65 A
Mounting Style
DIN Rail, Plate
Contactor Style
IEC
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 208V AC
20 hp
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
6,000,000
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
5 hp
Full Load Current - Resistive
80 A
Electrical Operating Durability
1,800,000, 500,000
Maximum Voltage Rating
690V AC
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
50 hp
Phase
Three
Conventional Free Air Thermal Current
80 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)

Description

The IEC Magnetic Contactor is a TeSys Deca three-pole, non-reversing device used to switch power circuits in electrical control systems. It features a 100–250 V coil (AC/DC) and a 1NO/1NC auxiliary contact arrangement (2 total), with three normally open main contacts. The unit operates at 50/60 Hz and is rated for operation within the specified voltage range of 690 V. It is compatible with DIN rail or plate mounting as specified and supplied without an enclosure.

Key features

  • Coil Voltage: 100–250 V AC/DC
  • Poles/Main Contacts: 3 poles; 3 normally open main contacts; Reversing: Non-Reversing
  • Auxiliary Contacts: 2 total (1NO/1NC)
  • Terminals: Control Circuit—Screw Clamp; Power Circuit—EverLink BTR
  • Enclosure/Mounting: IP20; No Enclosure; Mounting on DIN Rail or Plate
  • Series/Voltage: TeSys Deca; Rated Voltage: 690V AC; 50/60 Hz
  • Ratings: Full Load Amps (Inductive 65 A, Resistive 80 A); Rated Making Capacity—1000 A @ 440V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • Durability: Mechanical 6 Mcycles; Electrical 1.8 Mcycles
  • Included: Everlink Power Connections; Protective Cover
  • Weight/Dimensions: Net weight 1.002 kg; Depth 4.72 in; Height 4.8 in; Width 2.17 in
