  7. IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp

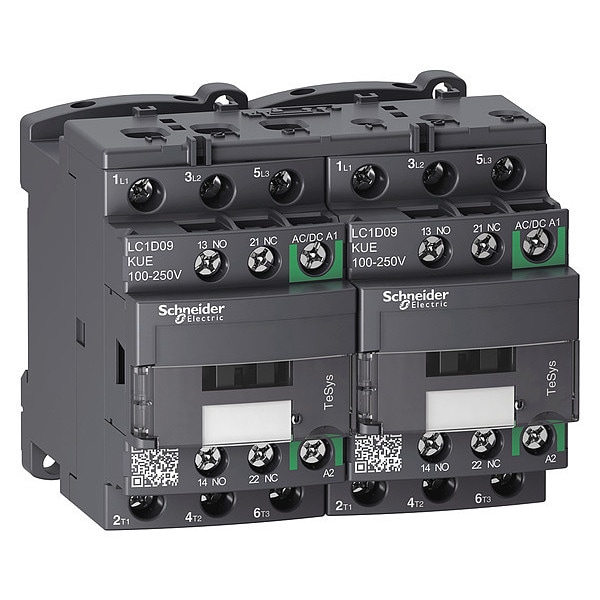

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp LC2D09KUE - main

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D09KUE

  • Zoro # G6047793

product price:  $176.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D09KUE
Zoro #
G6047793
UPC #
03606480987861
Country of Origin
France

Dimensions

Height
3.03 in
Depth
3.38 in
Width
3.54 in
Overall Width
3.54 in
Overall Depth
3.39 in
Overall Height
3.03 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 1 Phase - 240V
1 hp
HP @ 3 Phase - 480V
5 hp
Reversing
Yes
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
7 1/2 hp
Coil Volts
100 to 250 V AC/DC
Aux. Contact Configuration
1NO/1NC
HP @ 3 Phase - 240V
2 hp
HP @ 3 Phase - 208V
2 hp
HP @ 1 Phase - 120V
1/3 hp
Hz
50/60
Series
TeSys Deca
IP Rating
IP20
Number of Normally Open Main Contacts
3
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 208V AC
2 hp
Full Load Current - Resistive
20 A
Maximum Voltage Rating
690V AC
Frequency
50/60 Hz
Full Load Current - Inductive
9 A
Horsepower @ Three Phase - 240V AC
2 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 120V AC
1/3 hp
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Mounting Style
DIN Rail, Plate
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 240V AC
1 hp
Electrical Operating Durability
2,400,000, 600,000
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 480V AC
5 hp
Mechanical Operating Durability
15,000,000
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Rated Insulation Volts
690V
Inrush VA
25 VA
Includes Protective Cover
Yes
Switching Voltage
17 V (Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Operating Speed
3600 cycles per hr
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Overvoltage Category
CAT III
Electrical Durability
2.4 Mcycles (8 A, AC-3, Less than 440 V); 0.6 Mcycles (25 A, AC-1, Less than 440 V)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Net Weight
0.783 kg
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Voltage
690V AC
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Fire Rating
UL 94 V1
Switching Current
5 mA (Signalling Circuit)
Mounts On
Plate, Rail
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Signalling Circuit Frequency
25 to 400 Hz
Non-Overlap Time
1.5 ms
Rated Breaking Capacity
250 A @ 440V
Application
Motor Control, Resistive Load
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415V AC 50 Hz), 4 kW (at 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz)
Impedance
2.5 mOhm
Max. Temperature
850°C
Tightening Torque
1.7 Nm
Environmental Attributes
Mercury Free, Pollution Degree 3
Mechanical Durability
15 Mcycles
Hold VA
1.6 VA
Electrical Connection
Screw Clamp Terminals
Impulse Withstand Voltage
6 kV
Watts Loss
1.1W
Thermal Amperage
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

Schneider Electric’s IEC Magnetic Contactor (TeSys Deca) is a three-pole, reversing, electrically operated switch used to control power circuits in motor control and resistive-load applications. It uses a coil rated 100–250 V AC/DC, features screw clamp terminals, and includes two auxiliary contacts (1NO/1NC). It has no embedded surge suppressor and no enclosure, with a maximum voltage rating of 690 V and operation at 50/60 Hz. Suitable for mounting on DIN rails or plates; conforms to IEC standards for magnetic contactors within the TeSys family.

Application: Motor Control, Resistive Load

  • Coil Voltage: Rated for coil voltages between 100 V and 250 V AC/DC as per specifications
  • Poles: 3
  • Reversing: Yes
  • Auxiliary Contacts: 1NO/1NC (2 total)
  • Electrical Connection: Screw Clamp Terminals
  • Enclosure: No Enclosure; IP20
  • Series/Frame: TeSys Deca
  • Frequency: 50/60 Hz
  • Max Voltage: 690V AC
  • Full Load Amps (Resistive): Rated for operation at resistive loads up to 20 A under specified conditions
  • Full Load Amps (Inductive): Rated for operation at inductive loads up to 9 A under specified conditions
  • Embedded Surge Suppressor: No
  • Protective Cover: Yes
  • Weight: 0.783 kg
  • Dimensions: Height 3.03 in; Width 3.54 in; Depth 3.38 in (Overall Depth 3.39 in)
  • Fire Rating: Meets UL 94 V1 flammability rating (material specification)
  • Impulse Withstand Voltage: Rated for impulse withstand voltage of 6 kV within specified testing conditions
  • Standards: CCC, CSA, CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL Listed
  • Mechanical Durability: 15 Mcycles
  • Electrical Operating Durability: 2,400,000; 600,000
  • Mounting: DIN Rail, Plate
  • Rated Making Capacity: 250 A @ 440V (Power Circuit)
