- Item

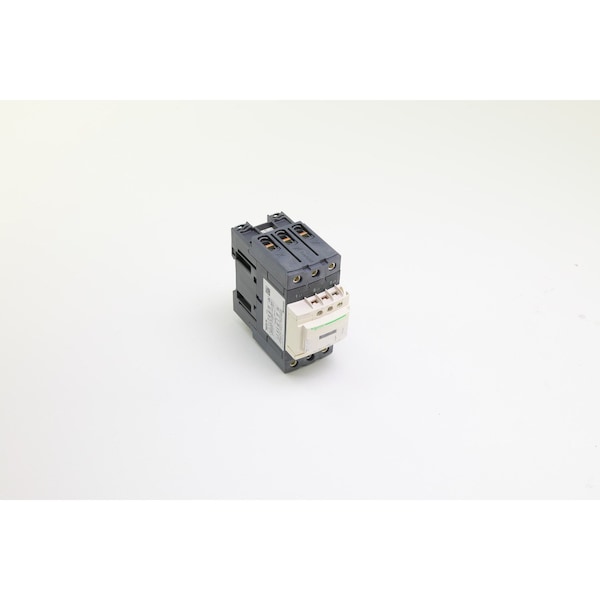

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Terminal Connection Type
- Screw
- Number of Auxillary Contacts
- 2
- Standards
- EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL 60947-4-1, IEC 60335-2-40, UL 60335-2-40, IEC 60335-1: Clause 30.2, CCC, UKCA, CE, EAC
- Pollution Degree
- 3
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact
- Coil Technology
- Without built-in suppressor module
- Product Or Component Type
- Contactor
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Mounting Support
- Plate; Rail
- Motor Power KW
15 kW at 220 to 230 V AC 50/60 Hz (AC-3); 22 kW at 380 to 400 V AC 50/60 Hz (AC-3); 30 kW at 500 V AC 50/60 Hz (AC-3); 33 kW at 660 to 690 V AC 50/60 Hz (AC-3); 25 kW at 415 V AC 50/60 Hz (AC-3); 30 kW at 440 V AC 50/60 Hz (AC-3); 11 kW at 400 V AC 50/60 Hz (AC-4); 15 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 22 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 30 kW at 500 V AC 50/60 Hz (AC-3e); 33 kW at 660 to 690 V AC 50/60 Hz (AC-3e); 25 kW at 415 V AC 50/60 Hz (AC-3e); 30 kW at 440 V AC 50/60 Hz (AC-3e)
- Inrush Power in VA
- 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 160 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
- Rated Short Time Withstand Current
- 400 A 104°F (40°C) - 10 s for power circuit; 810 A 104°F (40°C) - 1 s for power circuit; 84 A 104°F (40°C) - 10 min for power circuit; 208 A 104°F (40°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit
- Mechanical Robustness
- Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 10 Gn for 11 ms)
- Heat Dissipation
- 4 to 5 W at 50/60 Hz
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1; 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit
- Control Circuit Voltage Limits
- 0.3 to 0.6 Uc -40 to 158°F (-40 to 70°C) drop-out AC 50/60 Hz; 0.8 to 1.1 Uc -40 to 140°F (-40 to 60°C) operational AC 50 Hz; 0.85 to 1.1 Uc -40 to 140°F (-40 to 60°C) operational AC 60 Hz; 1 to 1.1 Uc 140 to 158°F (60 to 70°C) operational AC 50/60 Hz
- Connections - Terminals
Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: screw connection 1 0.00 to 0.05 in² (1 to 35 mm²) - cable stiffness: flexible without cable end; Power circuit: screw connection 2 0.00 to 0.04 in² (1 to 25 mm²) - cable stiffness: flexible without cable end; Power circuit: screw connection 1 0.00 to 0.05 in² (1 to 35 mm²) - cable stiffness: flexible with cable end; Power circuit: screw connection 2 0.00 to 0.04 in² (1 to 25 mm²) - cable stiffness: flexible with cable end; Power circuit: screw connection 1 0.00 to 0.05 in² (1 to 35 mm²) - cable stiffness: solid without cable end; Power circuit: screw connection 2 0.00 to 0.04 in² (1 to 25 mm²) - cable stiffness: solid without cable end
- Rated Operational Current
- 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Permissible Ambient Air Temperature Around The Device
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Insulation Resistance
- Greater than 10 MOhm for signalling circuit
- Contact Compatibility
- M2
- Minimum Switching Current
- 5 mA for signalling circuit
- Compatibility Code
- LC1D
- Pole Contact Composition
- 3 NO
- Operating Time
- 4 to 19 ms opening; 12 to 26 ms closing
- Average Impedance
- 1.5 mOhm - Ith 80 A 50 Hz for power circuit
- Protective Cover
- With
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat 6 mm; Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2; Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04 to 0.05 in² (25 to 35 mm²) hexagonal 0.16 in (4 mm); Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00 to 0.04 in² (1 to 25 mm²) hexagonal 0.16 in (4 mm); Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2; Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
- Poles Description
- 3P
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Flame Retardance
- V1 conforming to UL 94
- Control Circuit Voltage
- 24 V AC 50/60 Hz
- IP Degree Of Protection
- IP20 front face IEC 60529
- Climatic Withstand
- IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Electrical Durability
- 1.45 Mcycles 50 A AC-3 Less than or Equal to 440 V; 1.1 Mcycles 80 A AC-1 Less than or Equal to 440 V; 1.45 Mcycles 50 A AC-3e Less than or Equal to 440 V
- Overvoltage Category
- III
- Product Certifications
- DNV; LROS (Lloyds register of shipping); CCC; GOST; BV; RINA; CSA; UL; GL
- Rated Breaking Capacity
- 900 A at 440 V for power circuit conforming to IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Protective Treatment
- THIEC 60068-2-30
- Mechanical Durability
- 6 Mcycles
- IRMS Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947
- Control Circuit Type
- AC 50/60 Hz standard
- Utilisation Category
- AC-4; AC-1; AC-3; AC-3e
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 80 A (at 140°F (60°C)) for power circuit
- Minimum Switching Voltage
- 17 V for signalling circuit
- Maximum Horse Power Rating
3 hp at 115 V AC 50/60 Hz for 1 phase motors; 7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 15 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 15 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 40 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 40 hp at 575/600 V AC 50/60 Hz for 3 phase motors
- Contactor Application
- Resistive load; Motor control
- Hold-In Power Consumption in VA
- 13 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 15 VA 50 Hz cos phi 0.3 (at 68°F (20°C))
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Power Dissipation Per Pole
- 3.7 W AC-3; 9.6 W AC-1; 3.7 W AC-3e
- Rated Insulation Voltage
- Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
