- Item

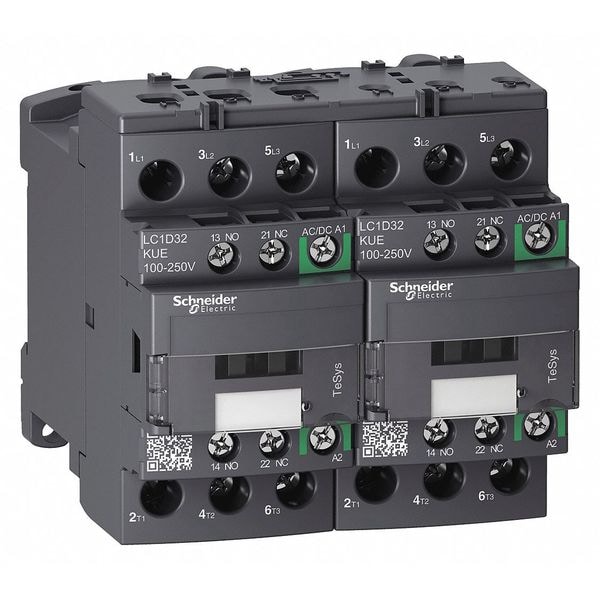

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 100V-250V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 32 A
- Full Load Amps-Resistive
- 50 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Enclosure NEMA Rating
- No Enclosure
- HP @ 3 Phase - 575V
- 25 hp
- Frame / Series / Class / Code
- TeSys
- Reversing
- Yes
- Series
- TeSys Deca
- IP Rating
- IP20
- Mounting Style
- DIN Rail, Plate
- Embedded Surge Suppressor
- No
- Maximum Operating Temperature
- 140 Degrees F
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Horsepower @ Single Phase - 120V AC
- 2 hp
- Contactor Style
- IEC
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Frequency
- 50/60 Hz
- Full Load Current - Resistive
- 50 A
- Horsepower @ Three Phase - 600V AC
- 25 hp
- Electrical Operating Durability
- 2,100,000, 900,000
- Horsepower @ Three Phase - 480V AC
- 20 hp
- Maximum Voltage Rating
- 690V AC
- Minimum Operating Temperature
- -40 Degrees F
- Mechanical Operating Durability
- 15,000,000
- Full Load Current - Inductive
- 32 A
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Number of Normally Open Main Contacts
- 3
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Includes Auxiliary Contacts
- Yes
- NEMA Enclosure Rating
- No Enclosure
- Watts Loss
- 1.1W
- Mechanical Durability
- 15 Mcycles
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
- Electrical Durability
- 2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V)
- Non-Overlap Time
- 1.5 ms
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
- Max. Operating Watts
- 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415V AC 50 Hz), 15 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz)
- Switching Current
- 5 mA (Signalling Circuit)
- Impedance
- 2 mOhm
- Shock Resistance
- 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
- Impulse Withstand Voltage
- 6 kV
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
- Includes Protective Cover
- Yes
- Signalling Circuit Frequency
- 25 to 400 Hz
- Operating Time
- 45 to 55 ms (Closing), 20 to 90 ms (Opening)
- Hold VA
- 1.6 VA
- Net Weight
- 0.923 kg
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Fire Rating
- UL 94 V1
- Operating Speed
- 3600 cycles per hr
- Application
- Motor Control, Resistive Load
- Inrush VA
- 25 VA
- Rated Breaking Capacity
- 550 A @ 440V
- Switching Voltage
- 17 V (Signalling Circuit)
- Overvoltage Category
- CAT III
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Insulation Volts
- 690V
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)
