  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw

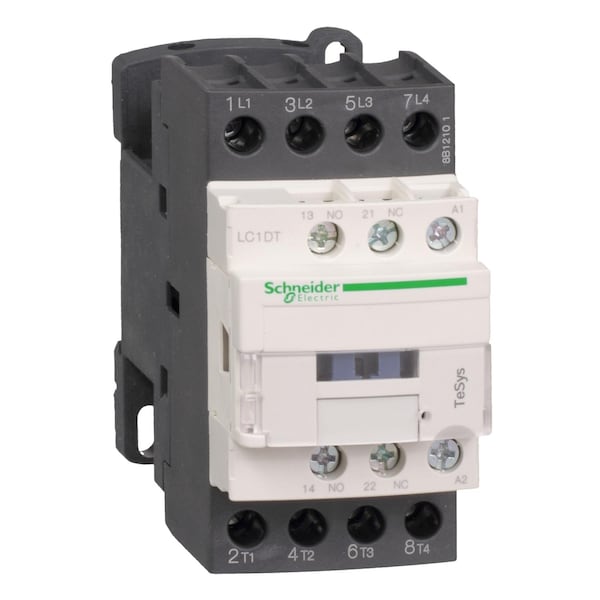

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw LC1DT406BL - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw

  • Mfr # LC1DT406BL

  • Zoro # G0848289

product price:  $285.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1DT406BL
Zoro #
G0848289
UPC #
785901229117
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
107 mm
Overall Width
45 mm
Overall Height
91 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, GL, RINA, BV, UL, CSA, CCC, LROS, DNV, GOST, THIEC 60068-2-30
Series
LC1D
Application
Resistive Load
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Net Weight
0.425 kg
Impulse Withstand Voltage
6 kV
Rated Insulation Volts
600/690V
Tightening Torque
1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)
Rated Breaking Capacity
450 A @ 440V
Fire Rating
UL 94 V1
Operating Time
65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening)
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Mechanical Durability
30 Mcycles
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Impedance
2 mOhm
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Operating Speed
3600 cycles per hr
Rated Short-Time Withstand Current
50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Electrical Durability
1.4 Mcycles (40 A, AC-1, Less than 440 V)
Switching Voltage
17 V (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
IP Rating
IP20
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Switching Current
5 mA (Signalling Circuit)
Includes Protective Cover
Yes
Non-Overlap Time
1.5 ms
Overvoltage Category
CAT III
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Full Load Current - Inductive
40 A
Full Load Current - Resistive
40 A
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC, 300V DC
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)

Description

Schneider Electric’s IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, rated for switching loads within specified parameters. This 4-pole, non-reversing unit features a 24 V DC coil and a 1NC/1NO auxiliary contact, and is suitable for resistive load applications within the specified electrical ratings.

Application: Resistive Load

  • Coil Voltage: 24 V DC
  • Auxiliary Contact Form: 1NC/1NO
  • Number of Poles: 4
  • Reversing Capability: Non-Reversing
  • Rated Voltage: 690 V AC, 300 V DC
  • Terminal Connection Type: Screw
  • Electrical Connection: Lugs-Ring Terminals
  • Mounting: Plate, Rail
  • IP Rating: IP20
  • Series: LC1D; Item: IEC Magnetic Contactor
  • Dimensions (HxWxD): 91 mm x 45 mm x 107 mm
  • Net Weight: 0.425 kg
  • Includes Protective Cover: Yes
  • Fire Rating: UL 94 V1
  • Full Load Amps: 40 A (Resistive and Inductive)
  • Impulse Withstand Voltage: 6 kV
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Non-Overlap Time: 1.5 ms
  • Operating Time: Closing 65.45–88.55 ms; Opening 20–30 ms
