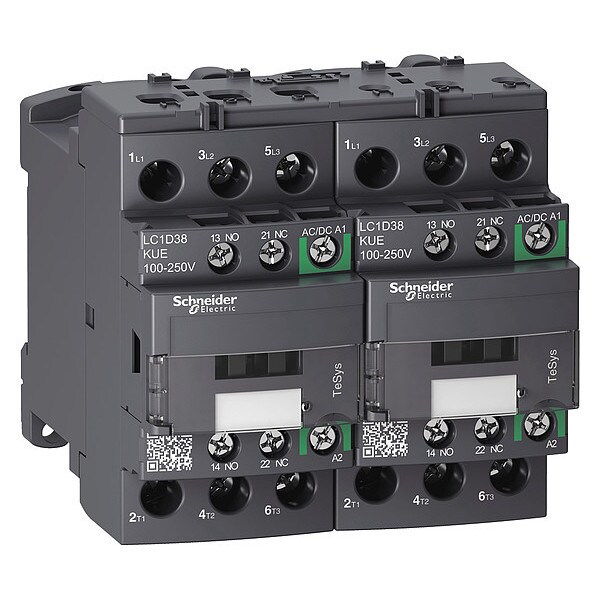

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D38KUE

  • Zoro # G6047909

product price:  $286.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC2D38KUE
Zoro #
G6047909
UPC #
03606480988073
Country of Origin
France

Dimensions

Width
3.54 in
Height
3.35 in
Depth
3.62 in
Overall Height
3.35 in
Overall Depth
3.62 in
Overall Width
3.54 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 1 Phase - 240V
5 hp
HP @ 3 Phase - 480V
20 hp
HP @ 3 Phase - 575V
25 hp
HP @ 1 Phase - 120V
2 hp
Enclosure NEMA Rating
No Enclosure
Aux. Contact Configuration
1NO/1NC
Coil Volts
100 to 250 V AC/DC
Reversing
Yes
HP @ 3 Phase - 208V
10 hp
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 240V
10 hp
Hz
50/60
Series
TeSys Deca
IP Rating
IP20
Horsepower @ Three Phase - 208V AC
10 hp
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 600V AC
25 hp
Maximum Voltage Rating
690V AC
Embedded Surge Suppressor
No
Contactor Style
IEC
Mounting Style
DIN Rail, Plate
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
15,000,000
Full Load Current - Inductive
38 A
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Three Phase - 240V AC
10 hp
Number of Normally Open Main Contacts
3
Horsepower @ Single Phase - 240V AC
5 hp
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
1,800,000, 900,000
Horsepower @ Single Phase - 120V AC
2 hp
Full Load Current - Resistive
50 A
Signalling Circuit Frequency
25 to 400 Hz
Non-Overlap Time
1.5 ms
Inrush VA
25 VA
Thermal Amperage
10 A (at 60 Degrees C Signalling Circuit), 50 A (at 60 Degrees C Power Circuit)
Operating Speed
3600 cycles per hr
Rated Insulation Volts
690V
Fire Rating
UL 94 V1
Overvoltage Category
CAT III
Switching Current
5 mA (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit)
Hold VA
1.6 VA
Max. Temperature
850°C
Rated Breaking Capacity
550 A @ 440V
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Environmental Attributes
Mercury Free, Pollution Degree 3
Switching Voltage
17 V (Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Application
Motor Control, Resistive Load
Mounts On
Plate, Rail
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Mechanical Durability
15 Mcycles
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Max. Operating Watts
9 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 18.5 kW (at 415V AC 50 Hz), 18.5 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz)
Rated Voltage
690V AC
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Net Weight
0.933 kg
Watts Loss
1.1W
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Includes Protective Cover
Yes
Impedance
2 mOhm
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Electrical Durability
1.8 Mcycles (35 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V)
Electrical Connection
Screw Clamp Terminals
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)

Description

The item is an IEC Magnetic Contactor from Schneider Electric. It is a three-pole reversing device with 1 normally open and 1 normally closed auxiliary contact, rated for operation within specified load types in IEC-style control circuits. The coil is rated for operation within the specified voltage range of 100–250 V AC/DC and wiring uses screw-clamp terminals. It is part of the TeSys Deca family and is compatible with mounting on DIN rails or plates as per installation guidelines.

Poles: 3; Reversing: Yes

  • Auxiliary contacts: 1NO/1NC
  • Coil: 100–250 V AC/DC
  • Electrical connection: Screw Clamp
  • Enclosure: No Enclosure; IP20
  • Mounting: DIN Rail, Plate; Mounts On: Plate, Rail
  • Series/Frame: TeSys Deca
  • Maximum voltage: rated for use at voltages up to 690V AC within specified conditions
  • Full load current: rated for full load currents of up to 50 A resistive and 38 A inductive under specified conditions
  • Rated making capacity: has a rated making capacity as specified under standard testing conditions
  • Operating times: typical operating times based on manufacturer specifications; actual performance may vary depending on application conditions
  • Weight: 0.933 kg
  • Includes: Auxiliary Contacts Yes; Protective Cover Yes; Embedded Surge Suppressor No
  • Non-Overlap Time: 1.5 ms
  • Frequency: 50/60 Hz
  • IP Rating: IP20
