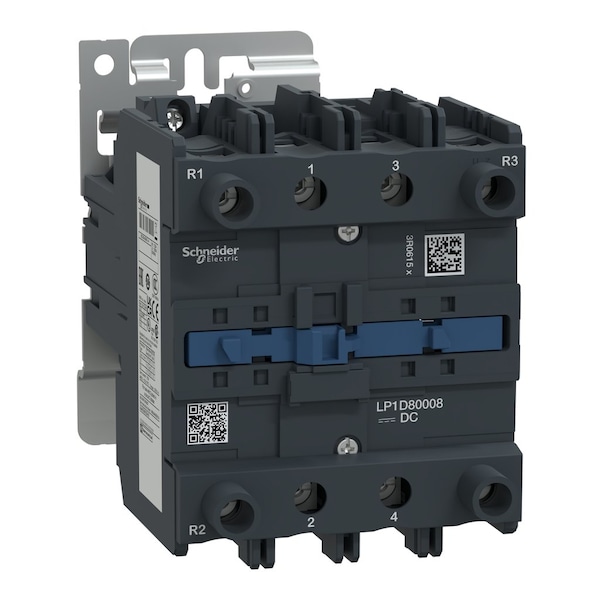

Schneider Electric IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Screw Clamp LP1D80008BD - main

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LP1D80008BD

  • Zoro # G810080916

product price:  $811.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Reversing Capability
Non-Reversing
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LP1D80008BD
Zoro #
G810080916
UPC #
3389110234329
Country of Origin
Czechia

Dimensions

Overall Width
3.78 in
Overall Height
5 in
Overall Depth
7.72 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
4
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Resistance Properties
Fire Resistant
Mounting Style
DIN Rail, Plate
Contactor Style
IEC
Mechanical Operating Durability
10,000,000
Frequency
50 Hz
Maximum Voltage Rating
690V AC
Full Load Current - Inductive
125 A
Electrical Operating Durability
800,000 (AC-1)
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Full Load Current - Resistive
200 A
Full Load Amps-Resistive
200 A

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 4-pole device designed for DIN Rail or Plate mounting. It operates with a coil voltage of 24V DC and has an IP rating of IP20. The contactor features an auxiliary contact form of 2NC/2NO and includes four auxiliary contacts. With a maximum voltage rating of 690V AC, it can handle full load currents up to 150 A inductive and 200 A resistive. This product does not include an embedded surge suppressor.

Key Features:

  • Auxiliary Contact Form: The device comes with a configuration of two normally closed (2NC) and two normally open (2NO) auxiliary contacts.
  • Coil Voltage: Operates on a coil voltage of 24V DC.
  • Full Load Amps: Rated for operation with inductive loads up to 150A and resistive loads up to 200A.
  • Mounting Style: Can be mounted using either the DIN Rail or Plate method.
  • Number of Poles: Comes with four poles which determine the number of circuits that can be switched simultaneously.
  • Maximum Voltage Rating: Rated for operation within voltage ranges not exceeding 690V AC.
  • Standards Compliance: Complies with CSA C22.2 No14, EN60947-4-1, EN60947-5-1, IEC60947–5–1, UL508 standards; please verify compatibility with your specific application.
  • -Terminal Connection Type: Features screw clamp terminals; proper installation required for effective use.
