IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D50AKUE
  • Zoro # G6037171
product price:
$
497.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
50 A
Full Load Amps-Resistive
80 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC2D50AKUE
Zoro #
G6037171
UPC #
03606480988134
Country of Origin
Korea, Republic of

Dimensions

Overall Width
4.69 in
Overall Depth
4.72 in
Overall Height
4.8 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
50 A
Full Load Amps-Resistive
80 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
40 hp
Reversing
Yes
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
IP Rating
IP20
Frequency
50/60 Hz
Minimum Operating Temperature
-40 Degrees F
Contactor Style
IEC
Horsepower @ Single Phase - 120V AC
3 hp
Number of Normally Open Main Contacts
3
Full Load Current - Inductive
50 A
Electrical Operating Durability
1,800,000, 500,000
Horsepower @ Three Phase - 208V AC
15 hp
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Plate
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
40 hp
Mechanical Operating Durability
6,000,000
Full Load Current - Resistive
80 A
Horsepower @ Three Phase - 600V AC
40 hp
Maximum Voltage Rating
690V AC
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 240V AC
15 hp
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Fuse Amps
10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
Application
Motor Control, Resistive Load
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit)
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Breaking Capacity
900 A @ 440V
Rated Insulation Volts
690V
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Environmental Attributes
Mercury Free, Pollution Degree 3
Hold VA
1.8 VA
Signalling Circuit Frequency
25 to 400 Hz
Max. Operating Watts
15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Mechanical Durability
6 Mcycles
Non-Overlap Time
1.5 ms
Electrical Durability
1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V)
Net Weight
2.164 kg
Fire Rating
UL 94 V1
Overvoltage Category
CAT III
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Inrush VA
18 VA
Watts Loss
1.2W
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit)
Impedance
1.5 mOhm
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Includes Protective Cover
Yes
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)

Description

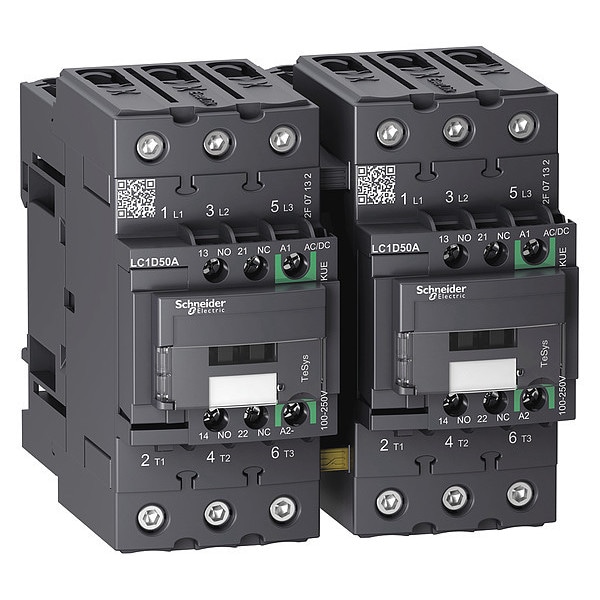

The Schneider Electric IEC Magnetic Contactor is a 3-pole reversing device rated for operation with motor control and resistive loads within specified parameters. It is rated for coil voltages between 100–250 V AC/DC and uses an IEC-style construction with screw clamp control terminals and EverLink power connections. The unit is part of the TeSys Deca family, supports mounting on DIN rail or plate, and includes a protective cover with no enclosure.

Coil voltage: rated for 100–250 V AC/DC

  • Poles and contacts: 3 main NO contacts; auxiliary contacts total 2 (1 NO / 1 NC)
  • Reversing capability: includes reversing functionality as specified by manufacturer
  • Frame/Series: TeSys Deca; Contactor style: IEC
  • Maximum voltage: up to 690 V AC; current ratings are based on standard testing conditions
  • Load ratings: specified load ratings under standard test conditions
  • Protection and enclosure: conforms to IP20 protection rating; includes protective cover but does not provide an enclosure
  • Connections: Control Circuit—Screw Clamp Terminals; Power Circuit—EverLink BTR Screw Connectors
  • Dimensions and weight: Depth 4.72 in; Height 4.80 in; Width 4.69 in; Net weight 2.164 kg
  • Durability and duty: tested for mechanical durability of approximately six million cycles under specified conditions; electrical durability based on manufacturer data
  • Operating characteristics: typical operating times within the manufacturer's specifications
  • Other specs: 50/60 Hz; 690 V rated voltage; 3 NO main contacts; Standards include UL Listed and EN/IEC 60947-4-1, 60947-5-1
