  7. IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

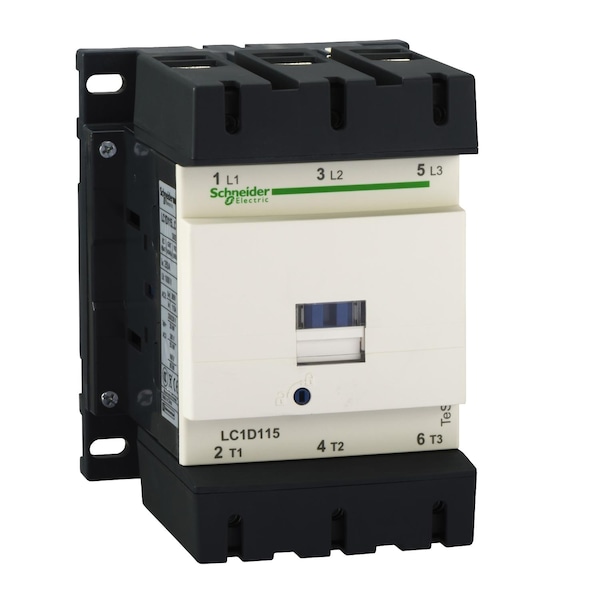

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D115G6 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D115G6

  • Zoro # G0849768

product price:  $667.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D115G6
Zoro #
G0849768
UPC #
785901235101
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
120 mm
Overall Height
158 mm
Overall Depth
136 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL, CSA, GOST, BV, GL, LROS, RINA, DNV, CCC, UKCA, CE, THIEC 60068-2-30
HP @ 3 Phase - 575V
100 hp
Series
LC1D
Features
Without Built-In Suppressor Module
Application
Motor Control, Resistive Load
Impedance
0.6 mOhm
Hold VA
22 VA
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Switching Current
5 mA (Signalling Circuit)
Includes Protective Cover
Yes
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Control Circuit Voltage Limits
Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz)
Electrical Durability
0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
Signalling Circuit Frequency
25 to 400 Hz
Watts Loss
3 to 8W
Rated Making Capacity
1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Rated Short-Time Withstand Current
250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Breaking Capacity
1100 A @ 440V
Fuse Amps
250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Overvoltage Category
CAT III
Shock Resistance
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Switching Voltage
17 V (Signalling Circuit)
IP Rating
IP20
Inrush VA
300 VA
Non-Overlap Time
1.5 ms
Max. Operating Watts
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Net Weight
2.5 kg
Impulse Withstand Voltage
8 kV
Operating Speed
2400 cycles per hr
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Operating Time
6 to 20 ms (Opening), 20 to 50 ms (Closing)
Mechanical Durability
8 Mcycles
Fire Rating
UL 94 V1
Horsepower @ Three Phase - 480V AC
75 hp
Full Load Current - Resistive
200 A
Full Load Current - Inductive
115 A
Horsepower @ Three Phase - 208V AC
30 hp
Horsepower @ Three Phase - 240V AC
40 hp
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
200 A (at 60°C Power Circuit)
Maximum Voltage Rating
1000V AC, 300V DC

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 120 V AC coil and auxiliary contact form 1NC/1NO. It uses screw clamp terminals and is rated for operation with motor control and resistive loads within specified parameters. The unit can be mounted on plate or rail, and it includes a protective cover. The series designation is LC1D, with a net weight of 2.5 kg and dimensions of 136 mm depth, 158 mm height, and 120 mm width.

Poles: 3

  • Auxiliary Contacts: 1NC/1NO
  • Coil Voltage: 120 V AC
  • Electrical connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • IP Rating: IP20
  • Series: LC1D
  • Protective Cover: Yes
  • Dimensions (L×W×H): 136 mm × 120 mm × 158 mm
  • Net Weight: 2.5 kg
  • Reversing Capability: Non-Reversing
  • Rated Voltage: rated voltage within specified ranges (see specifications)
  • Rated Making Capacity: rated making capacity as specified under test conditions; actual performance may vary based on application
  • Rated Breaking Capacity: rated breaking capacity as specified under test conditions; actual performance may vary based on application
  • Full Load Currents: Designed to operate within the rated full load currents listed in specifications
  • Fuses: Compatible with fuses of ratings specified; proper fuse selection recommended per application requirements
  • Operating Time: Typical operating times based on testing conditions; actual times may vary depending on system configuration
  • Shock Resistance: Tested to withstand shock levels up to specified values under controlled conditions
  • Vibration Resistance: Designed to withstand vibration levels up to specified values under standard testing procedures
  • Environmental Attributes: Mercury Free, PVC Free, Pollution Degree 3
  • Fire Rating: UL 94 V1
  • Impedance: 0.6 mΩ
  • Inrush VA: 300 VA
  • Hold VA: 22 VA
  • Working Height: Up to 9842.52 ft
  • Non-Overlap Time: 1.5 ms
