Shop SCHNEIDER ELECTRIC

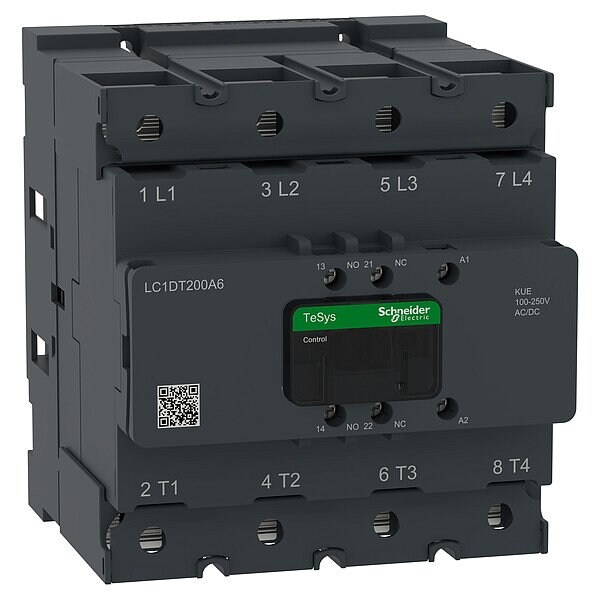

CTR Deca 200A 4P 100-250V ACDC Lug

  • Mfr # LC1DT200A6KUE

  • Zoro # G822841710

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Maximum Voltage Rating
440V
Embedded Surge Suppressor
Yes
Number of Poles
4
Frequency
50/60 Hz
Overall Depth
6.1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200A6KUE
Zoro #
G822841710
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Depth
6.1 in
Overall Height
5.98 in
Overall Width
5.28 in

Details

Maximum Voltage Rating
440V
Embedded Surge Suppressor
Yes
Number of Poles
4
Frequency
50/60 Hz
Reversing Capability
Non-Reversing
Full Load Current - Resistive
Not Rated
Phase
Single
NEMA Enclosure Rating
No Enclosure
Series
Tesys Deca
Minimum Operating Temperature
-40 Degrees F
Number of Auxillary Contacts
2
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Item
IEC Contactor
Full Load Current - Inductive
200 A
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Mechanical Operating Durability
8,000,000
Electrical Operating Durability
380,000
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Auxiliary Contact Form
1NO/1NC
Number of Normally Open Main Contacts
4
Terminal Connection Type
Box Lugs
Coil Voltage
100-250V AC/DC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.28 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
