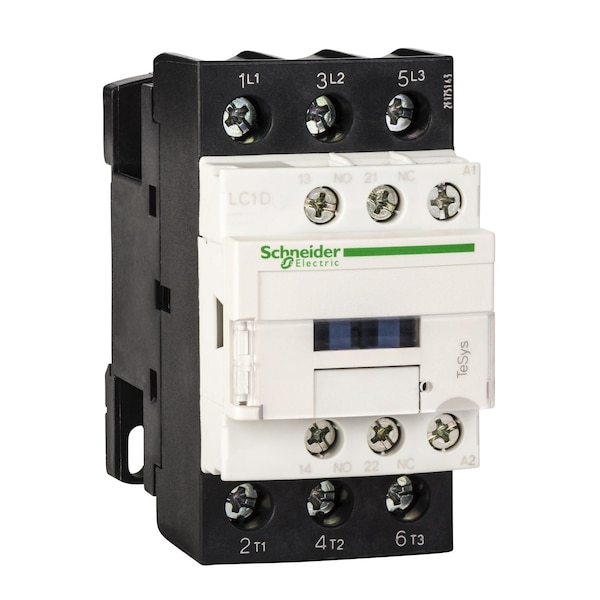

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D38G7

  • Zoro # G0850188

product price:  $244.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1D38G7
Zoro #
G0850188
UPC #
785901489016
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
92 mm
Overall Height
85 mm
Overall Width
45 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, BV, UL, RINA, DNV, CSA, LROS, GOST, CCC, GL, THIEC 60068-2-30
Series
LC1D
Application
Motor Control, Resistive Load
Features
Without Built-In Suppressor Module
Switching Voltage
17 V (Signalling Circuit)
Watts Loss
2 to 3W
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Switching Current
5 mA (Signalling Circuit)
Max. Operating Watts
18.5 kW (at 500V AC 50/60 Hz AC-3), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 7.5 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 9 kW (at 220 to 230V AC 50/60 Hz AC-3), 18.5 kW (at 415 to 440V AC 50/60 Hz AC-3), 18.5 kW (at 500V AC 50/60 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 9 kW (at 220 to 230V AC 50/60 Hz AC-3e), 18.5 kW (at 415 to 440V AC 50/60 Hz AC-3e)
Impedance
2 mOhm
Electrical Durability
1.4 Mcycles (50 A, AC-1, Less than 440 V); 1.4 Mcycles (38 A, AC-3, Less than 440 V); 1.4 Mcycles (38 A, AC-3e, Less than 440 V)
Non-Overlap Time
1.5 ms
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Rated Short-Time Withstand Current
60 A (at 40°C for 10 min Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Mechanical Durability
15 Mcycles
Signalling Circuit Frequency
25 to 400 Hz
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Overvoltage Category
CAT III
Operating Speed
3600 cycles per hr
Net Weight
0.38 kg
Operating Time
4 to 19 ms (Opening), 12 to 22 ms (Closing)
IP Rating
IP20
Rated Insulation Volts
600/690V
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Rated Breaking Capacity
550 A @ 440V
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Impulse Withstand Voltage
6 kV
Fire Rating
UL 94 V1
Inrush VA
70 VA
Includes Protective Cover
Yes
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
20 hp
Full Load Current - Inductive
38 A
Full Load Current - Resistive
50 A
Horsepower @ Three Phase - 208V AC
10 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrically operated switch (IEC Magnetic Contactor) with 1NC/1NO auxiliary contacts and a 120 V AC coil. It uses screw clamp terminals and is rated for operation within specified load types. It conforms to series specifications; mounting options are as specified.

Poles: 3

  • Auxiliary contacts: 2 total (1NC/1NO)
  • Coil voltage: 120 V AC
  • Reversing capability: non-reversing configuration
  • Electrical connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • Dimensions: Depth 92 mm; Height 85 mm; Width 45 mm
  • Net weight: 0.38 kg
  • IP rating: IP20
  • Full load current (resistive): rated for a maximum continuous current of 50 A under specified conditions
  • Rated voltage: 690 V AC, 300 V DC
  • Series: LC1D
  • Standards: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; UL 508
  • Fire rating: complies with fire safety standards as per UL 94 V1 classification
  • Non-overlap time: 1.5 ms
