Shop SCHNEIDER ELECTRIC

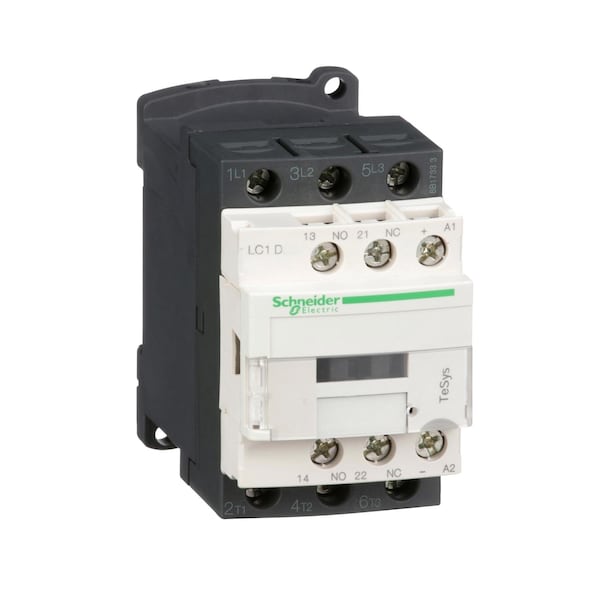

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D09GD

  • Zoro # G0850510

product price:  $132.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
125V DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
25 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D09GD
Zoro #
G0850510
UPC #
785901182368
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
95 mm
Overall Width
45 mm
Overall Height
77 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
125V DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
25 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, GL, BV, LROS, CCC, DNV, RINA, CSA, GOST, UKCA, THIEC 60068-2-30
HP @ 3 Phase - 575V
7 1/2 hp
Series
LC1D
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Application
Motor Control, Resistive Load
Net Weight
0.48 kg
IP Rating
IP20
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Breaking Capacity
250 A @ 440V
Switching Voltage
17 V (Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW (at 380 to 400V AC 50/60 Hz AC-3), 4 kW 415 to (at 440V AC 50/60 Hz AC-3), 5.5 kW (at 500V AC 50/60 Hz AC-3), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 400V AC 50/60 Hz AC-3e), 4 kW 415 to (at 440V AC 50/60 Hz AC-3e), 5.5 kW (at 500V AC 50/60 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Operating Speed
3600 cycles per hr
Overvoltage Category
CAT III
Signalling Circuit Frequency
25 to 400 Hz
Rated Short-Time Withstand Current
105 A (at 40 Degrees C for 10 s Power Circuit), 210 A (at 40 Degrees C for 1 s Power Circuit), 30 A (at 40 Degrees C for 10 min Power Circuit), 61 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Impedance
2.5 mOhm
Electrical Durability
0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V); 2 Mcycles (9 A, AC-3e, Less than 440 V)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Fire Rating
UL 94 V1
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Tightening Torque
1.7 Nm
Mechanical Durability
30 Mcycles
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Operating Time
53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)
Impulse Withstand Voltage
6 kV
Includes Protective Cover
Yes
Rated Insulation Volts
600/690V
Non-Overlap Time
1.5 ms
Full Load Current - Resistive
25 A
Horsepower @ Three Phase - 240V AC
2 hp
Horsepower @ Three Phase - 208V AC
2 hp
Full Load Current - Inductive
9 A
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 480V AC
5 hp
Conventional Free Air Thermal Current
25 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC, 300V DC

Description

The IEC Magnetic Contactor (LC1D series) is a 3-pole, non-reversing switch rated for operation within specified load types and conditions. It features 1NC/1NO auxiliary contacts, a 125 V DC coil, and screw clamp terminals. The unit mounts on plate or rail.

Key features

  • Series: LC1D
  • Poles: 3
  • Auxiliary contacts: 2 (1NC/1NO)
  • Coil voltage: 125 V DC
  • Rated voltage: 690 V AC / 300 V DC
  • Mounting: Plate, Rail
  • Electrical connection: Screw Clamp
  • IP rating: IP20
  • Includes protective cover: Yes
  • Net weight: 0.48 kg
  • Fusing: rated fusing capacities as specified; actual fuse ratings should be selected according to application requirements
  • Full load current - Resistive: rated for resistive loads up to 25 A under specified conditions
  • Overvoltage category: CAT III
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, GL, BV, LROS, CCC, DNV, RINA, CSA, GOST, UKCA, THIEC 60068-2-30
  • Maximum temperature rating: as defined by testing standards; actual operating temperature should be within manufacturer specifications
  • Dimensions: Height 77 mm, Width 45 mm, Depth 95 mm

    • Documents & Resources
