- Item

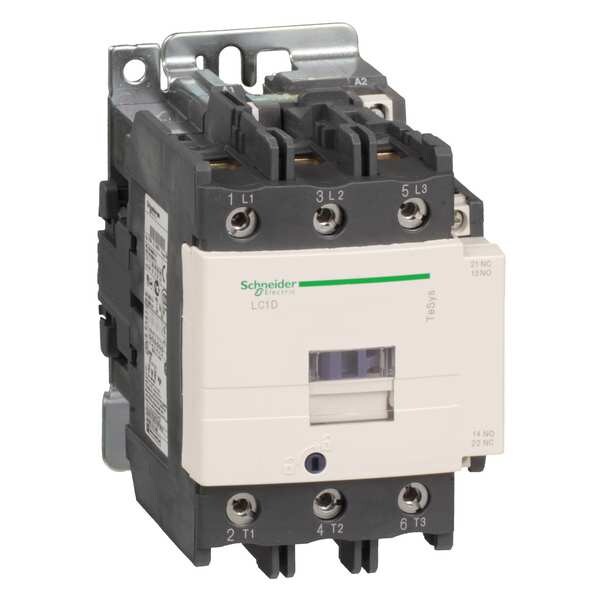

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 95 A
- Full Load Amps-Resistive
- 125 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL, EAC, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, IECEE CB Scheme, LROS, RINA, UL 60947-5-1, UL Listed, UL 60947-4-1
- HP @ 3 Phase - 575V
- 60 hp
- Frame / Series / Class / Code
- TeSys
- Enclosure NEMA Rating
- No Enclosure
- Series
- TeSys Deca
- Reversing
- No
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Overvoltage Category
- CAT III
- Control Circuit Voltage Limits
- Operational AC: 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
- Non-Overlap Time
- 1.5 ms
- Impedance
- 0.8 mOhm
- Hold VA
- 26 VA
- Includes Protective Cover
- Yes
- IP Rating
- IP20
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Watts Loss
- 6 to 10W
- Fuse Amps
- 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
- Rated Breaking Capacity
- 1100 A @ 440V
- Rated Short-Time Withstand Current
1,100 A (at 40 Degrees C for 1 s Power Circuit), 800 A (at 40 Degrees C for 10 s Power Circuit), 400 A (at 40 Degrees C for 1 min Power Circuit), 135 A (at 40 Degrees C for 10 min Power Circuit), 140 A (For 100 ms Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 100 A (For 1 s Signalling Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Shock Resistance
- 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
- Operating Time
- 20 to 35 ms (Closing), 6 to 20 ms (Opening)
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Vibration Resistance
- 3 G (Contactor Closed), 2 G (Contactor Open)
- Fire Rating
- UL 94 V1
- Impulse Withstand Voltage
- 8 kV
- Features
- Without Built-In Suppressor Module
- Rated Making Capacity
- 1100 A @ 440V AC (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Inrush VA
- 245 VA
- Operating Speed
- 3600 cycles per hr
- Max. Operating Watts
25 kW (at 220 to 230V AC 50 Hz AC-3), 45 kW (at 380 to 400V AC 50 Hz AC-3), 45 kW (at 415 to 440V AC 50 Hz AC-3), 55 kW (at 500V AC 50 Hz AC-3), 45 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 400V AC 50 Hz AC-4), 25 kW (at 220 to 230V AC 50 Hz AC-3e), 45 kW (at 380 to 400V AC 50 Hz AC-3e), 45 kW (at 415 to 440V AC 50 Hz AC-3e), 55 kW (at 500V AC 50 Hz AC-3e), 45 kW (at 660 to 690V AC 50 Hz AC-3e)
- Net Weight
- 1.61 kg
- Mechanical Durability
- 4 Mcycles
- Electrical Durability
- 1.2 Mcycles (95 A AC-3, 1.3 Mcycles (125 A AC-1, 1.2 Mcycles (95 A AC-3e
- Switching Voltage
- 17 V (Signalling Circuit)
- Application
- Motor Control, Resistive Load
- Signalling Circuit Frequency
- 25 to 400 Hz
- Number of Normally Open Main Contacts
- 3
- Electrical Operating Durability
- 1,200,000, 1,300,000
- Full Load Current - Resistive
- 125 A
- Horsepower @ Three Phase - 600V AC
- 60 hp
- Horsepower @ Three Phase - 240V AC
- 30 hp
- Maximum Operating Temperature
- 140 Degrees F
- Full Load Current - Inductive
- 95 A
- Phase
- Three
- Horsepower @ Single Phase - 240V AC
- 15 hp
- Minimum Operating Temperature
- -40 Degrees F
- Contactor Style
- IEC
- Horsepower @ Three Phase - 480V AC
- 60 hp
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Maximum Voltage Rating
- 1000V AC
- Mounting Style
- DIN Rail, Plate
- Includes Auxiliary Contacts
- Yes
- Frequency
- 50/60 Hz
- Horsepower @ Single Phase - 120V AC
- 7 1/2 hp
- Mechanical Operating Durability
- 4,000,000
- Embedded Surge Suppressor
- No
- NEMA Enclosure Rating
- No Enclosure
- Horsepower @ Three Phase - 208V AC
- 30 hp
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit)
