- MFR #
- LC1D40A6U7
- Zoro #
- G0849637
- UPC #
- 785901023517
- Country of Origin
- France
- Item

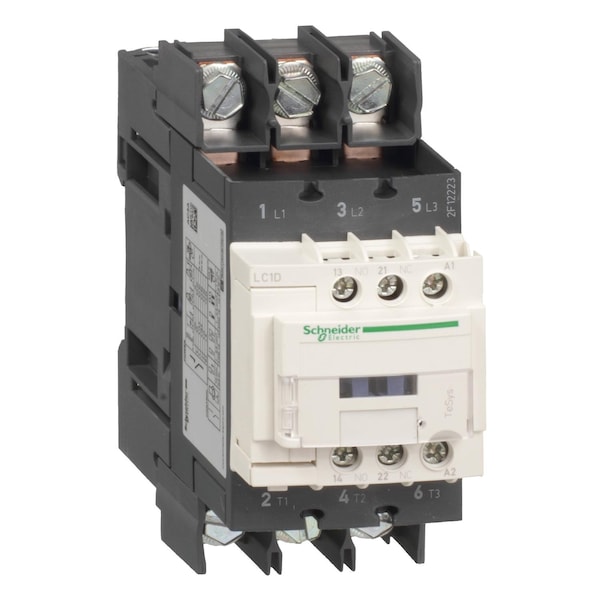

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 240V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 40 A
- Full Load Amps-Resistive
- 60 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Lug-Ring
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CCC, GOST, CSA, UL, THIEC 60068-2-30
- Includes
- Everlink Power Connections
- Series
- LC1D, TeSys, TeSys Deca
- HP @ 3 Phase - 575V
- 30 hp
- Application
- Motor Control, Resistive Load
- Features
- Without Built-In Suppressor Module
- Fire Rating
- UL 94 V1
- Net Weight
- 0.85 kg
- Overvoltage Category
- CAT III
- Hold VA
- 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
- Switching Voltage
- 17 V (Signalling Circuit)
- Rated Short-Time Withstand Current
- 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- IP Rating
- IP20
- Inrush VA
- 140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C)
- Impedance
- 1.5 mOhm
- Rated Insulation Volts
- 600/690V
- Electrical Durability
- 1.4 Mcycles (60 A, AC-1, Less than 440 V); 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.5 Mcycles (40 A, AC-3e, Less than 440 V)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Non-Overlap Time
- 1.5 ms
- Operating Time
- 4 to 19 ms (Opening), 12 to 26 ms (Closing)
- Shock Resistance
- 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
- Switching Current
- 5 mA (Signalling Circuit)
- Impulse Withstand Voltage
- 6 kV
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
- Max. Operating Watts
18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 220 to 230V AC 50/60 Hz AC-3), 22 kW (at 415 to 440V AC 50/60 Hz AC-3), 22 kW (at 500V AC 50/60 Hz AC-3), 30 kW (at 660 to 690V AC 50/60 Hz AC-3), 9 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 220 to 230V AC 50/60 Hz AC-3e), 22 kW (at 415 to 440V AC 50/60 Hz AC-3e), 22 kW (at 500V AC 50/60 Hz AC-3e), 30 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- Includes Protective Cover
- Yes
- Fuse Amps
- 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
- Watts Loss
- 4 to 5W
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Mechanical Durability
- 6 Mcycles
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Rated Breaking Capacity
- 800 A @ 440V
- Tightening Torque
- 1.7 Nm (Control Circuit), 2.5 to 6 Nm (Power Circuit)
- Operating Speed
- 3600 cycles per hr
- Inrush Power in VA
- 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 160 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
- Pollution Degree
- 3
- Control Circuit Type
- AC 50/60 Hz
- Control Circuit Voltage
- 240 V AC 50/60 Hz
- Heat Dissipation
- 4 to 5 W at 50/60 Hz
- Protective Cover
- With
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Contactor Application
- Motor control; Resistive load
- Power Dissipation Per Pole
- 2.4 W AC-3; 5.4 W AC-1; 2.4 W AC-3e
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 60 A (at 140°F (60°C)) for power circuit
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Protective Treatment
- THIEC 60068-2-30
- Pole Contact Composition
- 3 NO
- Contact Compatibility
- M2
- Rated Operational Current
- 60 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Utilisation Category
- AC-4; AC-1; AC-3; AC-3e
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Mechanical Robustness
- Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 10 Gn for 11 ms)
- Climatic Withstand
- IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
- [Icw] Rated Short-Time Withstand Current
- 320 A 40°C - 10 s for power circuit, 720 A 40°C - 1 s for power circuit, 72 A 40°C - 10 min for power circuit, 165 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 690 V IEC 60947-4-1
- Horsepower @ Three Phase - 480V AC
- 30 hp
- Full Load Current - Inductive
- 40 A
- Full Load Current - Resistive
- 60 A
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Maximum Operating Temperature
- 140 Degrees F
- Mounting Style
- Plate, Rail
- Maximum Voltage Rating
- 690V AC, 300V DC
