Item

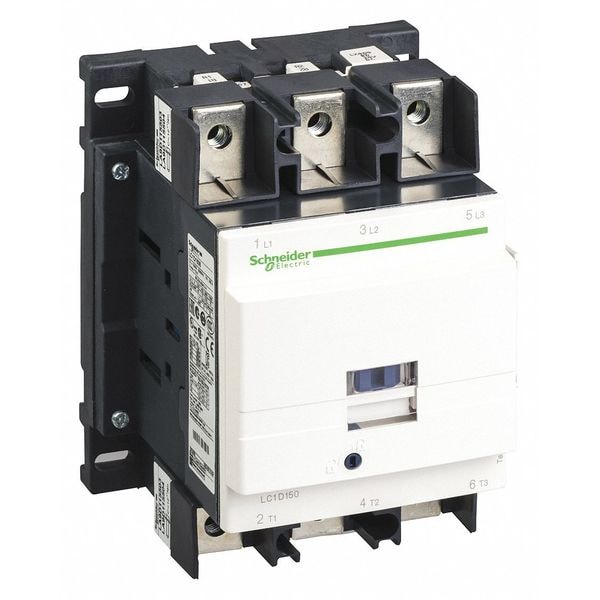

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA, UL, DNV, GOST, RINA, LROS, GL, CCC, BV, UKCA, CE, THIEC 60068-2-30
HP @ 3 Phase - 575V
125 hp
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit)
Rated Short-Time Withstand Current
250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Operating Time
20 to 35 ms (Closing), 40 to 75 ms (Opening)
Max. Operating Watts
40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V AC 50/60 Hz AC-4), 40 kW (at 220 to 230V AC 50/60 Hz AC-3e), 75 kW (at 380 to 400V AC 50/60 Hz AC-3e), 80 kW (at 415 to 440V AC 50/60 Hz AC-3e), 90 kW (at 500V AC 50/60 Hz AC-3e), 100 kW (at 660 to 690V AC 50/60 Hz AC-3e), 75 kW (at 1000V AC 50/60 Hz AC-3e)
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Impulse Withstand Voltage
8 kV
Switching Voltage
17 V (Signalling Circuit)
Overvoltage Category
CAT III
Operating Speed
1200 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Rated Breaking Capacity
1400 A @ 440V
Electrical Durability
0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V)
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
Shock Resistance
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Includes Protective Cover
Yes
Application
Motor Control, Resistive Load
Mechanical Durability
8 Mcycles
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Climatic Withstand
IACS E10 exposure to damp heat
Pole Contact Composition
3 NO
Utilisation Category
AC-3, AC-4, AC-1, AC-3e
Maximum Operating Rate
1200 cyc/h 60°C
Heat Dissipation
3-4.5 W at 50/60 Hz
[Icw] Rated Short-Time Withstand Current
250 A 40°C - 10 min for power circuit, 580 A 40°C - 1 min for power circuit, 1200 A 40°C - 10 s for power circuit, 1400 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Operating Altitude
0...9842.52 ft (0...3000 m)
Contactor Application
motor control, resistive load
Control Circuit Type
AC 50/60 Hz
Power Dissipation Per Pole
24 W AC-1, 13.5 W AC-3, 13.5 W AC-3e
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 6 Gn for 11 ms)
Protective Treatment
THIEC 60068-2-30
Fire Resistance
850°C IEC 60695-2-1
Full Load Current - Inductive
150 A
Horsepower @ Three Phase - 208V AC
40 hp
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 240V AC
50 hp
Horsepower @ Three Phase - 480V AC
100 hp
Maximum Voltage Rating
1000V AC, 300V DC
Inrush Power in VA
280-350 VA 60 Hz cos phi 0.9 (at 20°C), 280-350 VA 50 Hz cos phi 0.9 (at 20°C)
Rated Operational Current
200 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 150 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 150 A (at <60°C) at <= 440 V AC AC-3e for power circuit
Rated Operational Voltage
power circuit <= 1000 V AC 25...400 Hz, power circuit <= 300 V DC
Conventional Free Air Thermal Current
200 A (at 60°C Power Circuit)
Control Circuit Voltage
120 V AC 50/60 Hz
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate, Rail
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
