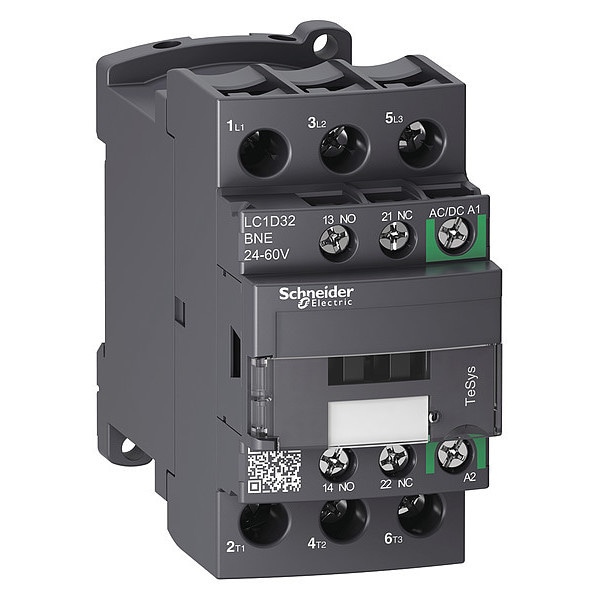

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D32BNE
  • Zoro # G6561709

product price:
$
220.35
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24-60V AC/DC
Number of Poles
3
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D32BNE
Zoro #
G6561709
UPC #
785901765004
Country of Origin
France
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24-60V AC/DC
Number of Poles
3
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
25 hp
Reversing
No
Series
TeSys Deca
Rated Breaking Capacity
550 A @ 440V
Net Weight
0.438 kg
Non-Overlap Time
1.5 ms
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Rated Insulation Volts
690V
Inrush VA
15 VA
Application
Motor Control, Resistive Load
Switching Current
5 mA (Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
Environmental Attributes
Mercury Free, Pollution Degree 3
Signalling Circuit Frequency
25 to 400 Hz
Max. Operating Watts
7.5 kW (at 220 to 230V AC 50 Hz AC-3), 15 kW (at 380 to 400V AC 50 Hz AC-3), 15 kW (at 415V AC 50 Hz AC-3), 15 kW (at 440V AC 50 Hz AC-3), 18.5 kW (at 500V AC 50 Hz AC-3), 18.5 kW (at 660 to 690V AC 50 Hz AC-3), 7.5 kW (at 220 to 230V AC 50 Hz AC-3e), 15 kW (at 380 to 400V AC 50 Hz AC-3e), 15 kW (at 415V AC 50 Hz AC-3e), 15 kW (at 440V AC 50 Hz AC-3e), 18.5 kW (at 500V AC 50 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Impulse Withstand Voltage
6 kV
Switching Voltage
17 V (Signalling Circuit)
Electrical Durability
2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V); 2.1 Mcycles (29 A, AC-3e, Less than 440 V)
Impedance
2 mOhm
Fire Rating
UL 94 V1
Overvoltage Category
CAT III
Watts Loss
0.6W
Hold VA
0.9 VA
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Mechanical Durability
15 Mcycles
Operating Speed
3600 cycles per hr
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit)
IP Rating
IP20
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Includes Protective Cover
Yes
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Features
Built-In Bi-Directional Peak Limiting
Horsepower @ Single Phase - 120V AC
2 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 208V AC
10 hp
Minimum Operating Temperature
-40 Degrees F
Frequency
50/60 Hz
Embedded Surge Suppressor
No
Mounting Style
DIN Rail, Plate
Contactor Style
IEC
Full Load Current - Inductive
32 A
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
2,100,000, 900,000
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
15,000,000
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 600V AC
25 hp
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 240V AC
10 hp
Phase
Three
Full Load Current - Resistive
50 A
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Single Phase - 240V AC
5 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
3.62 in
Overall Height
3.35 in
Overall Width
1.77 in

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device (TeSys Deca) rated for use in controlling power circuits with motor control and resistive loads. It features 1NO/1NC auxiliary contacts and a coil voltage range of 24 to 60 V AC/DC. The unit uses screw clamp terminals and is intended for panel-mounted applications conforming to IEC standards.

Coil voltage: Rated for operation within the specified voltage ranges

  • Auxiliary contacts: 1NO/1NC (2 total)
  • Main contacts: 3 poles; 3 normally open
  • Reversing: Non-Reversing
  • Phase/Series/Frame: Three phase; TeSys Deca; TeSys
  • Maximum voltage: Rated for operation at voltages up to specified maximums; Frequency: 50/60 Hz
  • Full Load Amps: Rated current values based on standard testing conditions
  • Electrical connection: Suitable for wiring within specified parameters
  • Enclosure: Designed with an IP20 rating; proper installation required to ensure safety
  • Embedded surge suppressor: Not equipped with built-in surge suppression capabilities
  • Mounting: DIN Rail, Plate
  • Protective cover: Included
  • Impulse withstand: Meets impulse withstand specifications as per applicable standards but does not guarantee protection against all transient events.
  • Max temperatures: Max operating temperature according to specifications.
  • Max operating temperature: Rated for operation within the specified ambient temperature range.
  • Standards: Complies with recognized safety standards when installed correctly but does not imply certification guarantees performance under all conditions.
  • Net weight and dimensions correspond to a compact DIN-rail/plate-mountable device
  • Tag/Series: TeSys Deca; 3 poles; Three-phase, non-reversing
